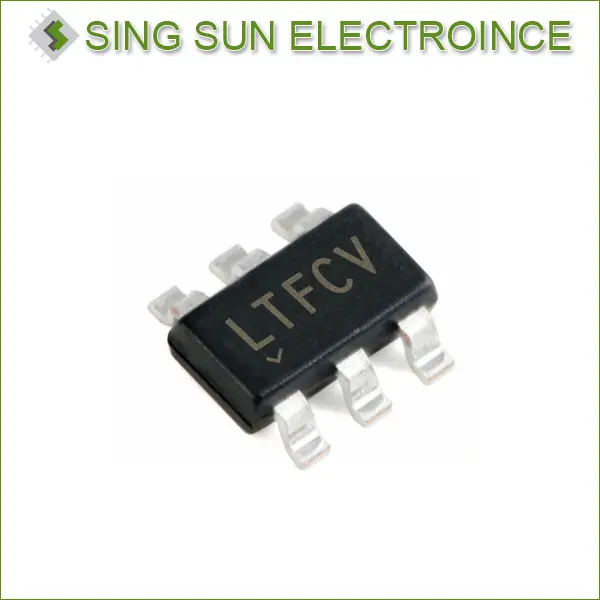

IC DELAY BLOCK 8TAP PROG TSOT23
| Part Number | LTC6994IS6-1#TRMPBF |
| Date Code | 2134 |
| Quantity Available | 100 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LTC6994-1.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | THAILAND |
| Country of Diffusion | UNITED STATES |
| Lot Number | MY20827.22 |
| Base Product Number | LTC6994-1 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Series | TimerBlox |
| Number of Taps/Steps | 8 |
| Function | Programmable |
| Delay to 1st Tap | - |
| Tap Increment | - |
| Available Total Delays | 1μs ~ 33.6s |
| Number of Independent Delays | 1 |
| Voltage - Supply | 2.25 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
The LTC6994IS6-1#TRMPBF is a programmable delay block with a range of 1µs to 33.6 seconds. The LTC6994IS6-1#TRMPBF is part of the TimerBlox® family of versatile silicon timing devices.
A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6994’s time base. The input-to-output delay is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 221.
The output (OUT) follows the input (IN) after delaying the rising and/or falling transitions. The LTC6994-1 will delay the rising or falling edge.
The LTC6994 also offers the ability to dynamically adjust the delay time via a separate control voltage.
