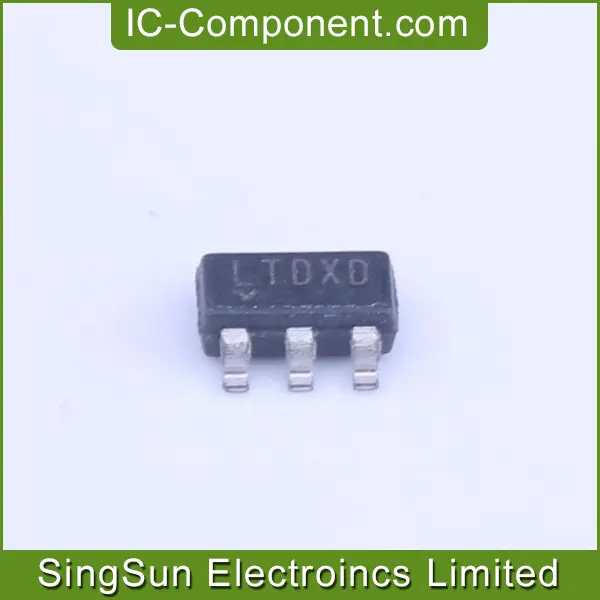

IC OSC SILICON PROG TSOT23-6
| Part Number | LTC6992CS6-2#TRMPBF |
| Date Code | 2138 |
| Quantity Available | 3000 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2500 |
| Datasheet | LTC6992-2.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | IRELAND |
| Base Product Number | LTC6992-2 |
| Packaging | Tape & Reel (TR) |
| Lot Number | KL13266.66 |
| MSL | 1 |
| Series | TimerBlox |
| Type | Oscillator, Silicon |
| Count | - |
| Frequency | 3.81Hz ~ 1MHz |
| Voltage - Supply | 2.25 V ~ 5.5 V |
| Current - Supply | 365μA |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Mounting Type | Surface Mount |
The LTC6992CS6-2#TRMPBF is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability. The LTC6992 is part of the TimerBlox® family of versatile silicon timing devices.
A single resistor, RSET, programs the LTC6992’s internal master oscillator frequency. The output frequency is determined by this master oscillator and an internal frequency divider, NDIV, programmable to eight settings from 1 to 16384.
Applying a voltage between 0V and 1V on the MOD pin sets the duty cycle.
The four versions differ in their minimum/maximum duty cycle. Note that a minimum duty cycle limit of 0% or maximum duty cycle limit of 100% allows oscillations to stop at the extreme duty cycle settings.
