LTC6813HLWE-1#3ZZTRPBF Price|Datasheet

LTC6813HLWE-1#3ZZTRPBF

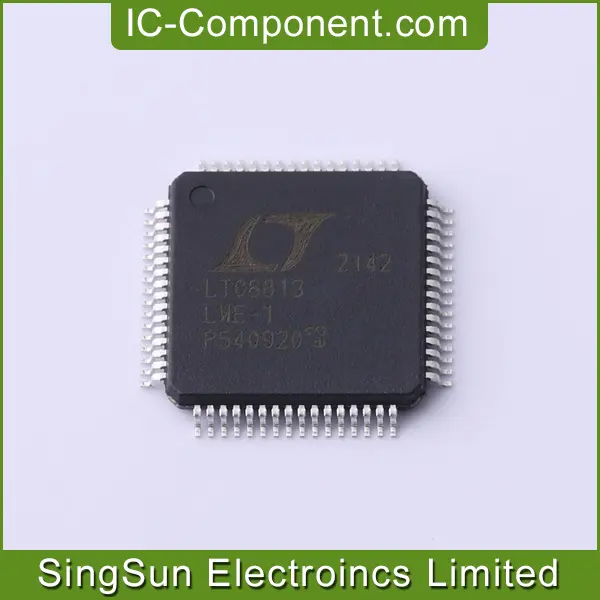

IC BATT MON MULTI 1-18C 64LQFP

Quantity: Price

1: $0

10: $0

100: $0

250: $0

500: $0

In Stock

Address: Quantity Available

Shenzhen: 4500 pcs

Shanghai: 0 pcs

Hong Kong: 0 pcs

United States: 0 pcs

The above prices and inventory are for reference only, please consult customer service for the latest quotation and inventory!

Specifications of LTC6813HLWE-1#3ZZTRPBF

Part Number	LTC6813HLWE-1#3ZZTRPBF
Date Code	2010
Quantity Available	4500 pcs
Manufacturer	Linear Technology/Analog Devices
Lead Time	Ship within 24 hours
QTY	3000
Datasheet	LTC6813-1.pdf
Minimum Quantity	More than 50pcs
Distributor	SingSun
RoHS Status	Lead free / RoHS Compliant
Shipment Way	EMS/SF/DHL/TNT/UPS/FedEx
Country of Assembly	SINGAPORE
Country of Diffusion	UNITED STATES

Base Product Number	LTC6813-1
Ship From	Hong Kong
Packaging	Tray
Lot Number	UD73191.87
MSL	1
Function	Battery Monitor
Battery Chemistry	Multi-Chemistry
Number of Cells	1 ~ 18
Fault Protection	-
Interface	SPI
Operating Temperature	-40°C ~ 125°C (TJ)
Package / Case	64-LQFP Exposed Pad
Supplier Device Package	64-LQFP-EP (10x10)

LTC6813HLWE-1#3ZZTRPBF Features

● AEC-Q100 Qualified for Automotive Applications
● Measures Up to 18 Battery Cells in Series
● 2.2mV Maximum Total Measurement Error
● Stackable Architecture for High Voltage Systems
● Built-In isoSPI™ Interface
○ 1Mb Isolated Serial Communications
○ Uses a Single Twisted Pair, Up to 100 Meters
○ Low EMI Susceptibility and Emissions
○ Bidirectional for Broken Wire Protection
● 290µs to Measure All Cells in a System
● Synchronized Voltage and Current Measurement
● 16-Bit Delta-Sigma ADC with Programmable 3rd Order Noise Filter
● Engineered for ISO 26262-Compliant Systems
● Passive Cell Balancing Up to 200mA (Max) with Programmable Pulse-Width Modulation
● 9 General Purpose Digital I/O or Analog Inputs
○ Temperature or Other Sensor Inputs
○ Configurable as an I²C or SPI Master
● 6µA Sleep Mode Supply Current
● 64-Lead eLQFP Package
● AEC-Q100 Qualified for Automotive Applications

LTC6813HLWE-1#3ZZTRPBF Description

The LTC6813-1 is a multicell battery stack monitor that measures up to 18 series connected battery cells with a total measurement error of less than 2.2mV. The cell measurement range of 0V to 5V makes the LTC6813-1 suitable for most battery chemistries. All 18 cells can be measured in 290µs, and lower data acquisition rates can be selected for high noise reduction.

Multiple LTC6813-1 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each LTC6813-1 has an isoSPI interface for high speed, RF immune, long distance communications. Multiple devices are connected in a daisy chain with one host processor connection for all devices. This daisy chain can be operated bidirectionally, ensuring communication integrity, even in the event of a fault along the communication path.

The LTC6813-1 can be powered directly from the battery stack or from an isolated supply. The LTC6813-1 includes passive balancing for each cell, with individual PWM duty cycle control for each cell. Other features include an onboard 5V regulator, nine general purpose I/O lines and a sleep mode, where current consumption is reduced to 6µA.
