LTC6803IG-2#3ZZPBF Price|Datasheet

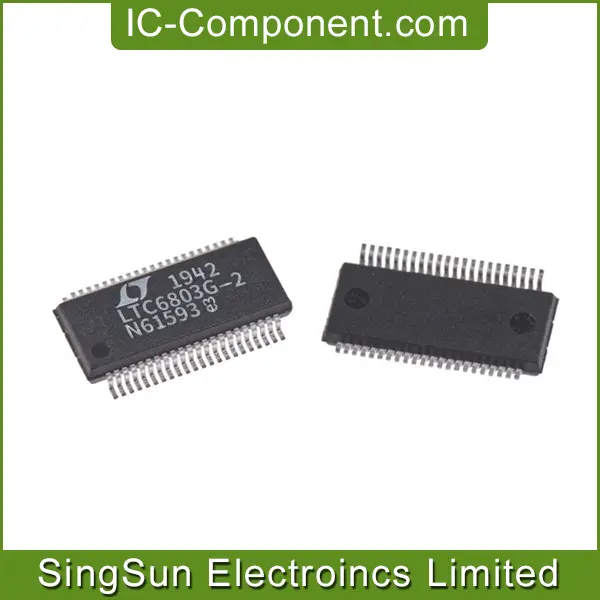

LTC6803IG-2#3ZZPBF

IC BATT STACK MON MULTI 44-SSOP

Quantity: Price

1: $0

10: $0

100: $0

250: $0

500: $0

In Stock

Address: Quantity Available

Shenzhen: 64 pcs

Shanghai: 0 pcs

Hong Kong: 0 pcs

United States: 0 pcs

The above prices and inventory are for reference only, please consult customer service for the latest quotation and inventory!

Specifications of LTC6803IG-2#3ZZPBF

Part Number	LTC6803IG-2#3ZZPBF
Date Code	1415
Quantity Available	64 pcs
Manufacturer	Linear Technology/Analog Devices
Lead Time	Ship within 24 hours
QTY	2500
Datasheet	LTC6803-2.pdf
Minimum Quantity	More than 50pcs
Distributor	SingSun
RoHS Status	Lead free / RoHS Compliant
Shipment Way	EMS/SF/DHL/TNT/UPS/FedEx
Country of Assembly	CHINA
Country of Diffusion	IRELAND

Base Product Number	LTC6803-2
Ship From	Hong Kong
Packaging	Tape & Reel (TR)
Lot Number	NT51736.74
MSL	3
Function	Battery Monitor
Battery Chemistry	Multi-Chemistry
Number of Cells	1 ~ 12
Fault Protection	Over/Under Voltage
Interface	Serial
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	44-FSOP (0.209", 5.30mm Width)
Supplier Device Package	44-SSOP

LTC6803IG-2#3ZZPBF Features

● Measures Up to 12 Battery Cells in Series
● Stackable Architecture
● Supports Multiple Battery Chemistries and Supercapacitors
● Individually Addressable Serial Interface
● 0.25% Maximum Total Measurement Error
● Engineered for ISO26262 Compliant Systems
● 13ms to Measure All Cells in a System
● Passive Cell Balancing:
○ Integrated Cell Balancing MOSFETs
○ Ability to Drive External Balancing MOSFETs
● On-board Temperature Sensor and Thermistor Inputs
● 1MHz Serial Interface with Packet Error Checking
● Safe with Random Connection of Cells
● Built-In Self Tests
● Delta-Sigma Converter With Built-In Noise Filter
● Open-Wire Connection Fault Detection
● 12μA Standby Mode Supply Current
● High EMI Immunity
● 44-Lead SSOP Package

LTC6803IG-2#3ZZPBF Description

The LTC6803 is a 2nd generation, complete battery monitoring IC that includes a 12-bit ADC, a precision voltage reference, a high voltage input multiplexer and a serial interface. Each LTC6803 can measure up to 12 series connected battery cells or supercapacitors. Many LTC6803 devices can be stacked to measure the voltage of each cell in a long battery string. Each LTC6803-2 has an individually addressable serial interface, allowing up to 16 LTC6803-2 devices to interface to one control processor and operate simultaneously. Each cell input has an associated MOSFET switch for discharging overcharged cells. The LTC6803-2 connects the bottom of the stack to V^– internally. It is pin compatible with the LTC6802-2, providing a drop-in upgrade.

The LTC6803 provides a standby mode to reduce supply current to 12μA. Furthermore, the LTC6803 can be powered from an isolated supply, providing a technique to reduce battery stack current draw to zero.
