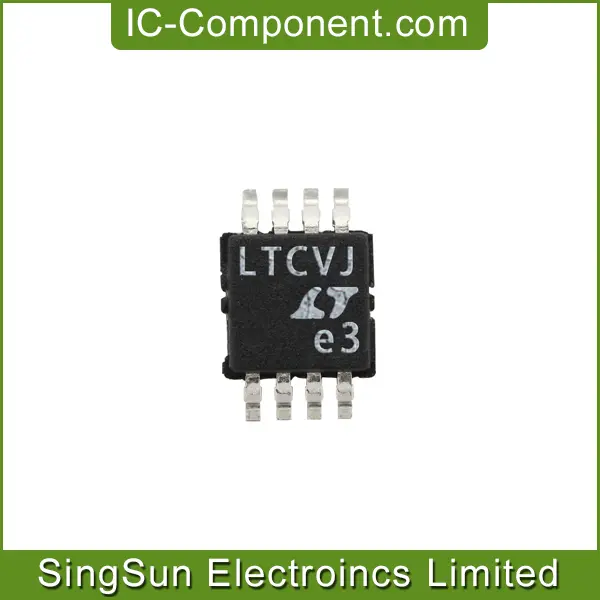

IC VREF SERIES 2.048V 8MSOP
| Part Number | LTC6652AHMS8-2.048#TRPBF |
| Date Code | 2348 |
| Quantity Available | 30311 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 3000 |
| Datasheet | LTC6652.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SINGAPORE |
| Country of Diffusion | UNITED STATES |
| Lot Number | AF51530.86 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LTC6652 |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 2.048V |
| Voltage - Output (Max) | - |
| Current - Output | 5mA |
| Tolerance | ±0.05% |
| Temperature Coefficient | 5ppm/°C |
| Noise - 0.1Hz to 10Hz | 2.1ppmp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 2.7 V ~ 13.2 V |
| Current - Supply | 560μA |
| Current - Cathode | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
The LTC6652 family of precision, low drift, low noise references is fully specified over the temperature range of –40°C to 125°C. High order curvature compensation allows these references to achieve a low drift of less than 5ppm/°C with a predictable temperature characteristic and an output voltage accuracy of ±0.05%. The performance over temperature should appeal to automotive, high performance industrial and other high temperature applications.
The LTC6652 voltage references can be powered from supply voltages up to 13.2V. They boast low noise, excellent load regulation, source and sink capability and exceptional line rejection, making them a superior choice for demanding precision applications. A shutdown mode allows power consumption to be reduced when the reference is not needed. The optional output capacitor can be left off when space constraints are critical.
The LTC6652 references are offered in an 8-lead MSOP package and an 8-lead LS8 package. The LS8 is a 5mm × 5mm surface mount hermetic package that provides outstanding stability.
