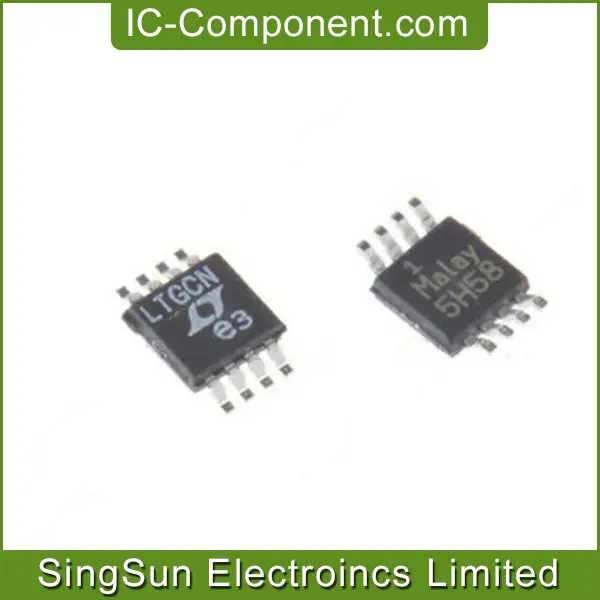

IC OPAMP DIFF 180MHZ RRO 8MSOP
| Part Number | LTC6362CMS8#TRPBF |
| Date Code | 2125 |
| Quantity Available | 1200 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 500 |
| Datasheet | LTC6362.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SOUTH KOREA |
| Country of Diffusion | USA |
| Lot Number | LR19467.95 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LTC6362 |
| Series | - |
| Amplifier Type | Differential |
| Number of Circuits | 1 |
| Output Type | Differential, Rail-to-Rail |
| Slew Rate | 45 V/μs |
| Gain Bandwidth Product | 180MHz |
| -3db Bandwidth | 34MHz |
| Current - Input Bias | 75nA |
| Voltage - Input Offset | 75μV |
| Current - Supply | 1mA |
| Current - Output / Channel | - |
| Voltage - Supply, Single/Dual (±) | 2.8 V ~ 5.25 V, ±1.4 V ~ 2.625 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
The LTC6362 is a low power, low noise differential op amp with rail-to-rail input and output swing that has been optimized to drive low power SAR ADCs. The LTC6362 draws only 1mA of supply current in active operation, and features a shutdown mode in which the current consumption is reduced to 70μA.
The amplifier may be configured to convert a single-ended input signal to a differential output signal, and is capable of being operated in an inverting or noninverting configuration.
Low offset voltage, low input bias current, and a stable high impedance configuration make this amplifier suitable for use not only as an ADC driver but also earlier in the signal chain, to convert a precision sensor signal to a balanced (differential) signal for processing in noisy industrial environments.
The LTC6362 is available in an 8-lead MSOP package and also in a compact 3mm × 3mm 8-pin leadless DFN package, and operates with guaranteed specifications over a –40°C to 125°C temperature range.
