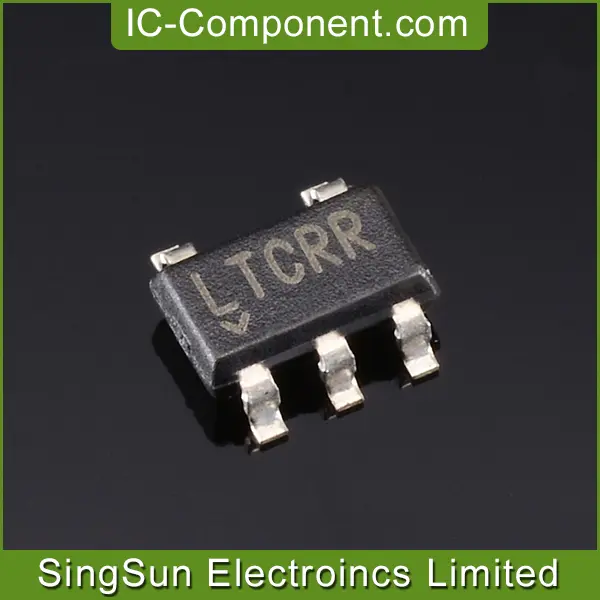

IC OPAMP GP 18MHZ RRO TSOT23-5
| Part Number | LTC6240HS5#TRMPBF |
| Date Code | 2120 |
| Quantity Available | 18272 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LTC6240.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | CHINA |
| Country of Diffusion | IRELAND |
| Lot Number | UR80922.22 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LTC6240 |
| Series | - |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 10 V/μs |
| Gain Bandwidth Product | 18MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 0.2pA |
| Voltage - Input Offset | 50μV |
| Current - Supply | 2mA |
| Current - Output / Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 2.8 V ~ 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
The LTC6240 is single low noise, low offset, rail-to-rail output, unity gain stable CMOS op amps that feature 1pA of input bias current. Input bias current is guaranteed to be 1pA max on the single LTC6240. The 0.1Hz to 10Hz noise of only 550nVP-P, along with an offset of just 125μV are significant improvements over traditional CMOS op amps. Additionally, noise is guaranteed to be less than 10nV/√Hz at 1kHz. An 18MHz gain bandwidth, and 10V/μs slew rate, along with the wide supply range and low input capacitance, make them perfect for use as fast signal processing amplifiers.
These op amps have an output stage that swings within 30mV of either supply rail to maximize the signal dynamic range in low supply applications. The input common mode range extends to the negative supply. They are fully specified on 3V and 5V, and an HV version guarantees operation on supplies up to ±5V.
The LTC6240 is available in the 8-pin SO and the 5-pin SOT-23 packages.
