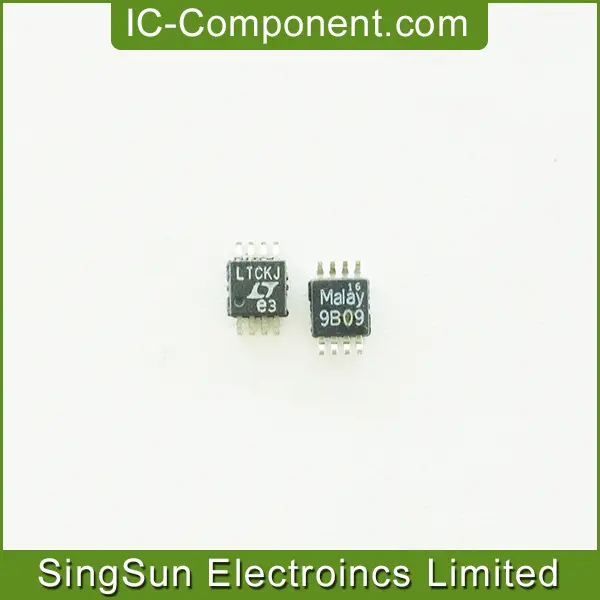

IC OPAMP CURR SENSE 200KHZ 8MSOP
| Part Number | LTC6102CMS8#TRPBF |
| Date Code | 2116 |
| Quantity Available | 2500 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LTC6102.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | KOREA |
| Country of Diffusion | KOREA |
| Lot Number | ZQ62514.67 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LTC6102 |
| Series | - |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 200kHz |
| -3db Bandwidth | - |
| Current - Input Bias | 60pA |
| Voltage - Input Offset | 3μV |
| Current - Supply | 420μA |
| Current - Output / Channel | 1mA |
| Voltage - Supply, Single/Dual (±) | 4 V ~ 60 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
The LTC6102 is versatile, high voltage, highside current sense amplifiers. Their high supply voltage rating allows their use in many high side applications, while the low drift and offset ensure accuracy across a wide range of operating conditions.
The LTC6102 monitor current via the voltage across an external sense resistor (shunt resistor). Internal circuitry converts input voltage to output current, allowing a small sense signal on a large common mode voltage to be translated to a ground-referred signal. Low DC offset allows the use of very low shunt resistor values and large gain-setting resistors. As a result, power loss in the shunt is reduced.
The wide operating supply and high accuracy make the LTC6102 ideal for a large array of applications, from automotive, to industrial and power management. A maximum input sense voltage of 2V allows a wide range of currents and voltages to be monitored. Fast response makes the LTC6102 the perfect choice for load current warnings and shutoff protection control.
The LTC6102 is available in 8-lead MSOP and 3mm × 3mm DFN packages.
