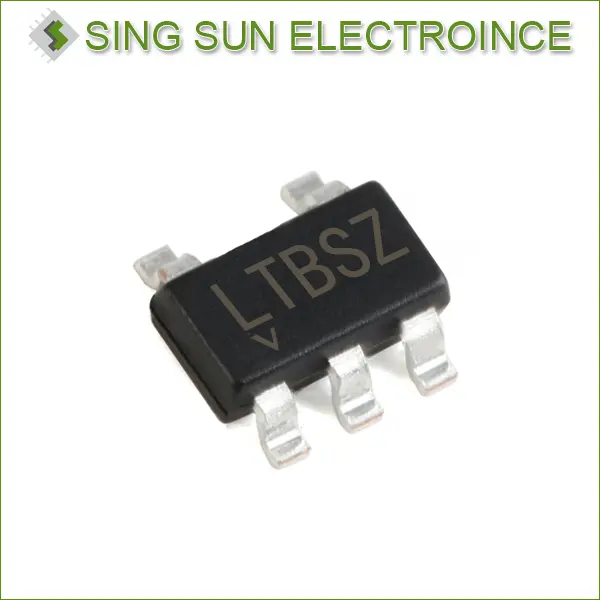

IC OPAMP CURR SENSE TSOT23-5
| Part Number | LTC6101HVBCS5#MPBF |
| Date Code | 2341 |
| Quantity Available | 20378 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LTC6101HV.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | PHILIPPINES |
| Country of Diffusion | UNITED STATES |
| Lot Number | PH96794.45 |
| MSL | 1 |
| Packaging | Cut Tape (CT) |
| Base Product Number | LTC6101HV |
| Series | - |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 200kHz |
| -3db Bandwidth | - |
| Current - Input Bias | 100nA |
| Voltage - Input Offset | 150μV |
| Current - Supply | 350μA |
| Current - Output / Channel | 1mA |
| Voltage - Supply, Single/Dual (±) | 5 V ~ 100 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
The LTC6101HVBCS5#MPBF is versatile, high voltage, high side current sense amplifiers. Design flexibility is provided by the excellent device characteristics; 300µV Max offset and only 375µA (typical at 60V) of current consumption. The LTC6101HV operates on supplies from 5V to 100V.
The LTC6101 monitors current via the voltage across an external sense resistor (shunt resistor). Internal circuitry converts input voltage to output current, allowing for a small sense signal on a high common mode voltage to be translated into a ground referenced signal. Low DC offset allows the use of a small shunt resistor and large gain-setting resistors. As a result, power loss in the shunt is reduced.
The wide operating supply range and high accuracy make the LTC6101 ideal for a large array of applications from automotive to industrial and power management. A maximum input sense voltage of 500mV allows a wide range of currents to be monitored. The fast response makes the LTC6101 the perfect choice for load current warnings and shutoff protection control. With very low supply current, the LTC6101 is suitable for power sensitive applications.
The LTC6101HVBCS5#MPBF is available in 5-lead SOT-23 and 8-lead MSOP packages.
