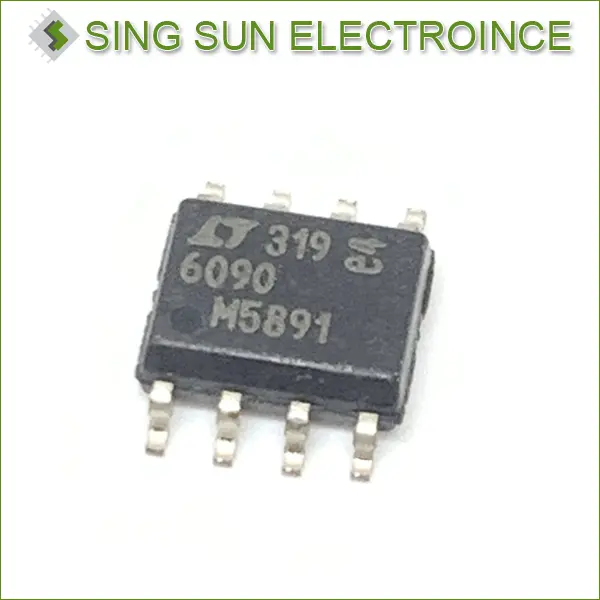

IC OPAMP GP 10MHZ RRO 8SOIC
| Part Number | LTC6090IS8E#PBF |
| Date Code | 2002 |
| Quantity Available | 14566 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LTC6090.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | CHINA |
| Country of Diffusion | KOREA |
| Lot Number | WC14226.77 |
| MSL | 3 |
| Packaging | Tube |
| Base Product Number | LTC6090 |
| Series | - |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 21 V/μs |
| Gain Bandwidth Product | 12MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 3pA |
| Voltage - Input Offset | 330μV |
| Current - Supply | 2.8mA |
| Current - Output / Channel | - |
| Voltage - Supply, Single/Dual (±) | 9.5 V ~ 140 V, ±4.75 V ~ 70V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
The LTC6090IS8E#PBF is high voltage, precision monolithic operational amplifiers. The LTC6090 is unity gain stable. Both amplifiers feature high open loop gain, low input referred offset voltage and noise, and pA input bias current and are ideal for high voltage, high impedance buffering and/or high gain configurations.
The amplifiers are internally protected against overtemperature conditions. A thermal warning output, TFLAG, goes active when the die temperature approaches 150°C. The output stage may be turned off with the output disable pin OD. By tying the OD pin to the thermal warning output (TFLAG), the part will disable the output stage when it is out of the safe operating area. These pins easily interface to any logic family.
Both amplifiers may be run from a single 140V or spit ±70V power supplies and are capable of driving up to 200pF of load capacitance. They are available in either an 8-lead SO or 16-lead TSSOP package with exposed pad for low thermal resistance.
