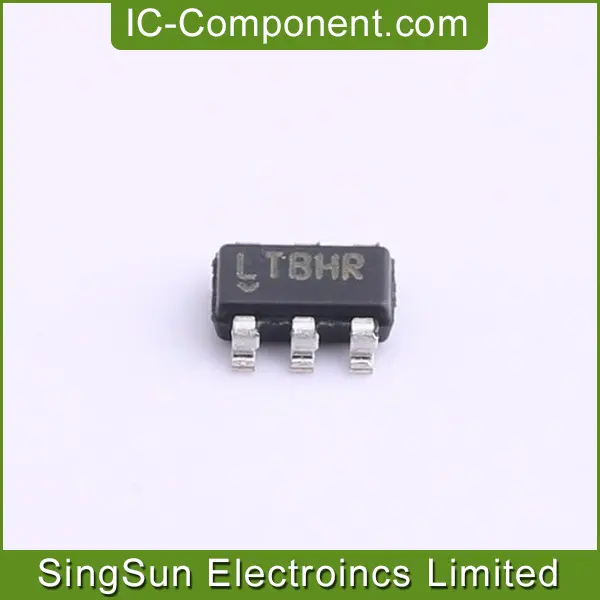

IC OR CTRLR SRC SELECT TSOT23-6
| Part Number | LTC4412HVIS6#TRPBF |
| Date Code | 2133 |
| Quantity Available | 2500 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LTC4412HV.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SOUTH KOREA |
| Country of Diffusion | KOREA |
| Lot Number | CJ44638.34 |
| MSL | 1 |
| Base Product Number | LTC4412HV |
| Packaging | Tape & Reel (TR) |
| Type | Source Selector Switch |
| FET Type | P-Channel |
| Ratio - Input:Output | 2:01 |
| Internal Switch(s) | No |
| Delay Time - ON | 110μs |
| Delay Time - OFF | 13μs |
| Current - Output (Max) | - |
| Current - Supply | 18μA |
| Voltage - Supply | 2.5 V ~ 36 V |
| Applications | Automotive, Handheld, USB Powered Supplies |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
The LTC4412HV controls an external P-channel MOSFET to create a near ideal diode function for power switchover or load sharing. This permits highly efficient OR’ing of multiple power sources for extended battery life and low selfheating. When conducting, the voltage drop across the MOSFET is typically 20mV. For applications with a wall adapter or other auxiliary power source, the load is automatically disconnected from the battery when the auxiliary source is connected. Two or more LTC4412HVs may be interconnected to allow load sharing between multiple batteries or charging of multiple batteries from a single charger. The LTC4412HV is an extended supply and temperature range version of the LTC4412.
The wide supply operating range supports operation from one to eight Li-Ion cells in series. The low quiescent current (11µA typical) is independent of the load current. The gate driver includes an internal voltage clamp for MOSFET protection.
The STAT pin can be used to enable an auxiliary P-channel MOSFET power switch when an auxiliary supply is detected. This pin may also be used to indicate to a microcontroller that an auxiliary supply is connected. The control (CTL) input enables the user to force the primary MOSFET off and the STAT pin low.
The LTC4412HV is available in a low profile (1mm) SOT-23 package.
