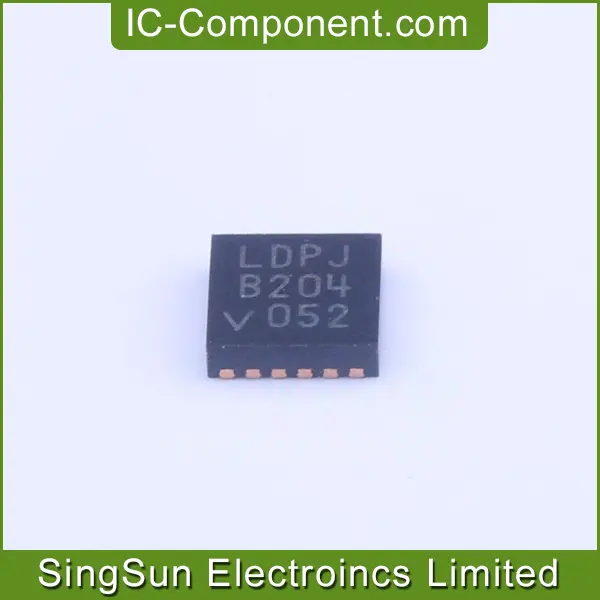

IC OR CTRLR N+1 12DFN
| Part Number | LTC4352HDD#PBF |
| Date Code | 2342 |
| Quantity Available | 28998 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2500 |
| Datasheet | LTC4352.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SOUTH KOREA |
| Country of Diffusion | KOREA |
| Lot Number | DD41023.69 |
| MSL | 3 |
| Base Product Number | LTC4352 |
| Packaging | Tube |
| Type | N+1 ORing Controller |
| FET Type | N-Channel |
| Ratio - Input:Output | N:1 |
| Internal Switch(s) | No |
| Delay Time - ON | 250ns |
| Delay Time - OFF | 200ns |
| Current - Output (Max) | - |
| Current - Supply | 1.4mA |
| Voltage - Supply | 2.9 V ~ 18 V |
| Applications | Redundant Power Supplies, Telecom Infrastructure |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
The LTC4352 creates a near-ideal diode using an external N-channel MOSFET. It replaces a high power Schottky diode and the associated heat sink, saving power and board area. The ideal diode function permits low loss power ORing and supply holdup applications.
The LTC4352 regulates the forward voltage drop across the MOSFET to ensure smooth current transfer in diode-OR applications. A fast turn-on reduces the load voltage droop during supply switch-over. If the input supply fails or is shorted, a fast turn-off minimizes reverse currents.
The controller operates with supplies from 2.9V to 18V. For lower voltages, an external supply is needed at the VCC pin. Power passage is disabled during undervoltage or overvoltage conditions. The controller also features an open MOSFET detect circuit that flags excessive voltage drop across the pass transistor in the on state. A REV pin enables reverse current, overriding the diode behavior when desired.
