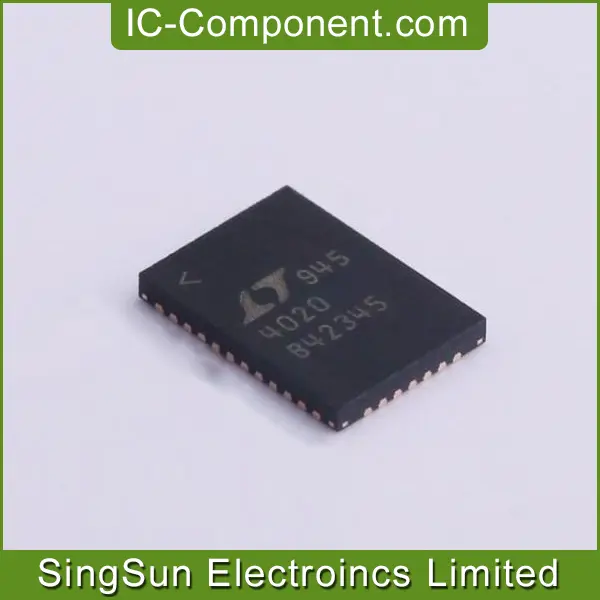

IC BATT CHG MULTI-CHEM 38QFN
| Part Number | LTC4020EUHF#PBF |
| Date Code | 2128 |
| Quantity Available | 15188 pcs |
| Manufacturer | Analog Devices, Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 1000 |
| Datasheet | LTC4020.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SOUTH KOREA |
| Country of Diffusion | TAIWAN,CHINA |
| Lot Number | KN83385.43 |
| MSL | 3 |
| Base Product Number | LTC4020 |
| Packaging | Tube |
| Series | PowerPath™ |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | - |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | - |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 55V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
The LTC4020 is a high voltage power manager providing PowerPath™ instant-on operation and high efficiency battery charging over a wide voltage range. An onboard buck-boost DC/DC controller operates with battery and/or system voltages above, below, or equal to the input voltage.
The LTC4020 seamlessly manages power distribution between battery and converter outputs in response to load variations, battery charge requirements and input power supply limitations.
The LTC4020 battery charger can provide a constant-current/constant-voltage charge algorithm (CC/CV), constant-current charging (CC), or charging with an optimized 4-step, 3-stage lead-acid battery charge profile. Maximum converter and battery charge currents are resistor programmable.
The IC's instant-on operation ensures system load power even with a fully discharged battery. Additional safety features include preconditioning for heavily discharged batteries and an integrated timer for termination and protection.
