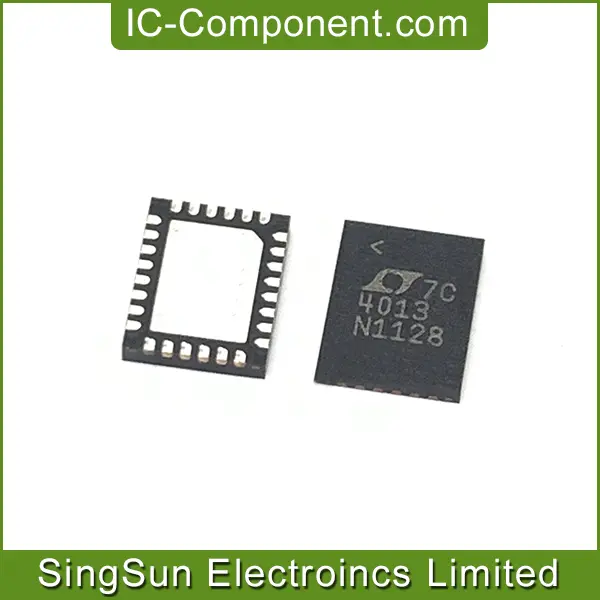

IC BATT CHG MULT-CHEM 6CEL 28QFN
| Part Number | LTC4013IUFD#MPBF |
| Date Code | 2344 |
| Quantity Available | 22438 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2500 |
| Datasheet | LTC4013.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | THAILAND |
| Country of Diffusion | KOREA |
| Lot Number | MQ88371.61 |
| MSL | 1 |
| Base Product Number | LTC4013 |
| Packaging | Tape & Reel (TR) |
| Series | - |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 6 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | - |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 60V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
The LTC4013IUFD#MPBF is a high voltage battery charger that is well suited for charging a wide range of lead-acid batteries including both vented and sealed types. It supports bulk, float, absorption and equalization charging. The LTC4013 also supports termination options for Li-Ion/Polymer and LiFePO4 batteries.
Charging is performed with a high efficiency synchronous buck (step-down) converter that uses external N-channel MOSFETs. Switching frequency is resistor programmable or can be synchronized to an external clock. Charge current is programmed with an external sense resistor.
The LTC4013IUFD#MPBF also includes maximum power point tracking input-voltage regulation for limited power sources such as solar panels. Other features include user-programmable absorption and equalization times, temperature-compensated charge voltage and an external N-channel MOSFET isolation control circuit.
