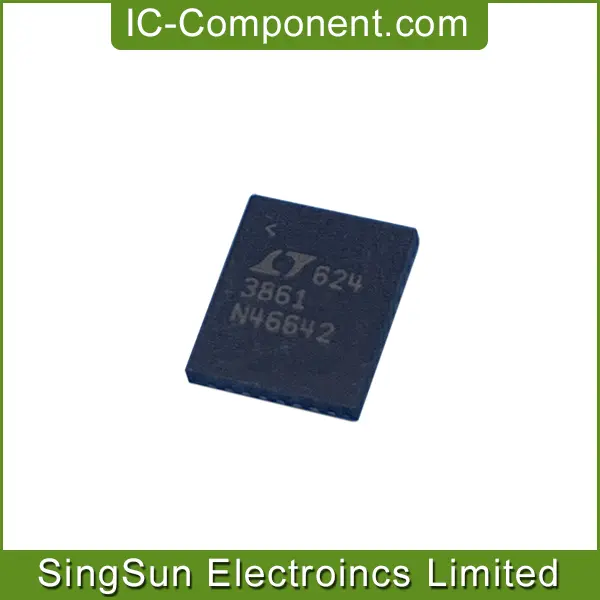

IC REG CTRLR BUCK 36QFN
| Part Number | LTC3861IUHE#PBF |
| Date Code | 1510 |
| Quantity Available | 51 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2500 |
| Datasheet | LTC3861.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SOUTH KOREA |
| Country of Diffusion | KOREA |
| Lot Number | BF45322.94 |
| MSL | 1 |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking |
| Base Product Number | LTC3861 |
| Packaging | Tube |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V |
| Frequency - Switching | 250kHz ~ 3MHz |
| Duty Cycle (Max) | 0.915 |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-QFN (5x6) |
The LTC3861 is a dual PolyPhase® synchronous stepdown switching regulator controller for high current distributed power systems, digital signal processors, and other telecom and industrial DC/DC power supplies. It uses a constant-frequency voltage mode architecture combined with very low offset, high bandwidth error amplifiers and a remote output sense differential amplifier per channel for excellent transient response and output regulation.
The controller incorporates lossless inductor DCR current sensing to maintain current balance between phases and to provide overcurrent protection. The chip operates from a VCC supply between 3V and 5.5V and is designed for stepdown conversion from VIN between 3V and 24V to output voltages between 0.6V and VCC – 0.5V.
The TRACK/SS pins provide programmable soft-start or tracking functions. Inductor current reversal is disabled during soft-start to safely power prebiased loads. The constant operating frequency can be synchronized to an external clock or linearly programmed from 250kHz to 2.25MHz. Up to six LTC3861 controllers can operate in parallel for 1-, 2-, 3-, 4-, 6- or 12-phase operation.
The LTC3861 is available in a 36-pin 5mm × 6mm QFN package.
