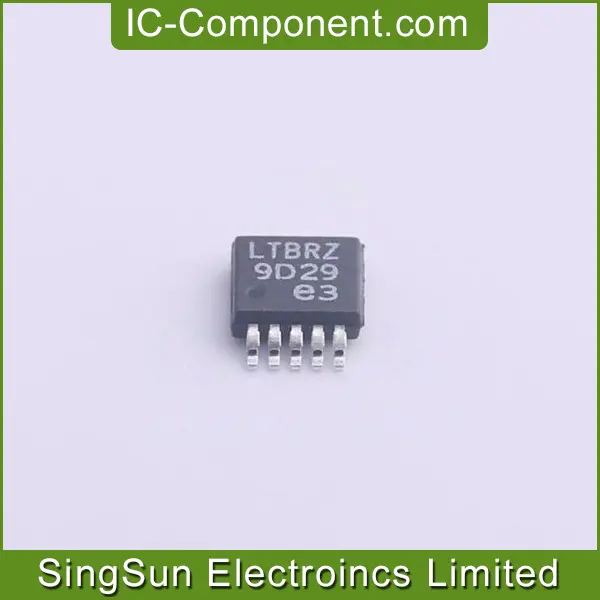

IC REG CTRLR BUCK 10MSOP
| Part Number | LTC3824EMSE#MPBF |
| Date Code | 2123 |
| Quantity Available | 19993 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LTC3824.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | PHILIPPINES |
| Country of Diffusion | IRELAND |
| Lot Number | OH46711.11 |
| MSL | 1 |
| Control Features | Frequency Control, Soft Start |
| Base Product Number | LTC3824 |
| Packaging | Reel |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 60 V |
| Frequency - Switching | 200kHz ~ 600kHz |
| Duty Cycle (Max) | 1 |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
The LTC3824 is a step-down DC/DC controller designed to drive an external P-channel MOSFET. With a wide input range of 4V to 60V and a high voltage gate driver, the LTC3824 is suitable for many industrial and automotive high power applications. Constant frequency current mode operation provides excellent performance.
The LTC3824 can be configured for Burst Mode operation. Burst Mode operation enhances low current efficiency (only 40µA quiescent current) and extends battery run time. The switching frequency can be programmed up to 600kHz and is easily synchronizable.
Other features include current limit, soft-start, micropower shutdown, and Burst Mode disable.
The LTC3824 is available in a 10-lead MSE power package.
