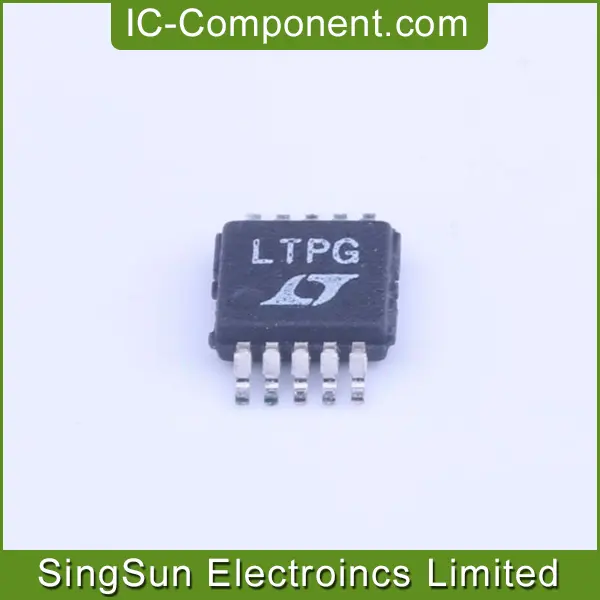

IC REG BOOST ADJ 1A SYNC 10MSOP
| Part Number | LTC3401EMS#PBF |
| Date Code | 2216 |
| Quantity Available | 17771 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LTC3401.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SINGAPORE |
| Country of Diffusion | KOREA |
| Lot Number | LT68478.49 |
| MSL | 3 |
| Packaging | Tube |
| Base Product Number | LTC3401 |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 1A (Switch) |
| Frequency - Switching | 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
The LTC3401 is a high efficiency, fixed frequency, step-up DC/DC converter that operates from an input voltage below 1V. The device includes a 0.16Ω N-channel MOSFET switch and a 0.18Ω P-channel synchronous rectifier. Switching frequencies up to 3MHz are programmed with an external timing resistor and the oscillator can be synchronized to an external clock. An external Schottky diode is optional but will slightly improve efficiency.
Quiescent current is only 38µA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and can be enabled by driving the MODE/SYNC pin high. If the MODE/SYNC pin has either a clock or is driven low, then fixed frequency switching is enabled.
Other features include 1µA shutdown, antiringing control, open-drain power good output, thermal shutdown and current limit. The LTC3401 is available in the 10-lead thermally enhanced MSOP package. Higher current applications should use the 2A rated LTC3402 synchronous boost converter. Applications that require VOUT < 2.6V should use the LTC3423.
