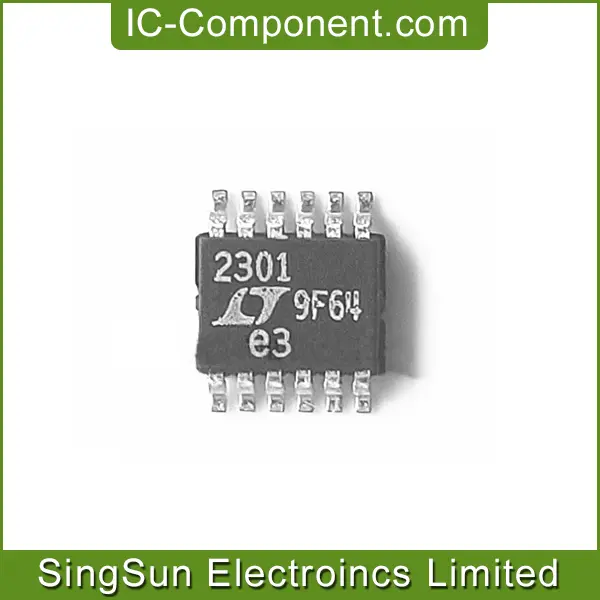

IC ADC 12-BIT 1CHN 12-MSOP
| Part Number | LTC2301CMS#PBF |
| Date Code | 2214 |
| Quantity Available | 259 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1000 |
| Datasheet | LTC2301.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | KOREA |
| Country of Diffusion | TAIWAN,CHINA |
| Lot Number | OP78049.15 |
| MSL | 1 |
| Packaging | Tube |
| Base Product Number | LTC2301 |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 14k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
The LTC2301 is low noise, low power, 1-channel, 12-bit successive approximation ADCs with an I2C compatible serial interface. These ADCs include an internal reference and a fully differential sample-andhold circuit to reduce common mode noise. The LTC2301 operate from an internal clock to achieve a fast 1.3μs conversion time.
The LTC2301 operate from a single 5V supply and draw just 300μA at a throughput rate of 1ksps. The ADC enters nap mode when not converting, reducing the power dissipation.
The LTC2301 is available in small 12-pin 4mm × 3mm DFN and 12-pin MSOP packages. The internal 2.5V reference further reduces PCB board space requirements.
The low power consumption and small size make the LTC2301/LTC2305 ideal for battery operated and portable applications, while the 2-wire I2C compatible serial interface makes these ADCs a good match for space-constrained systems.
