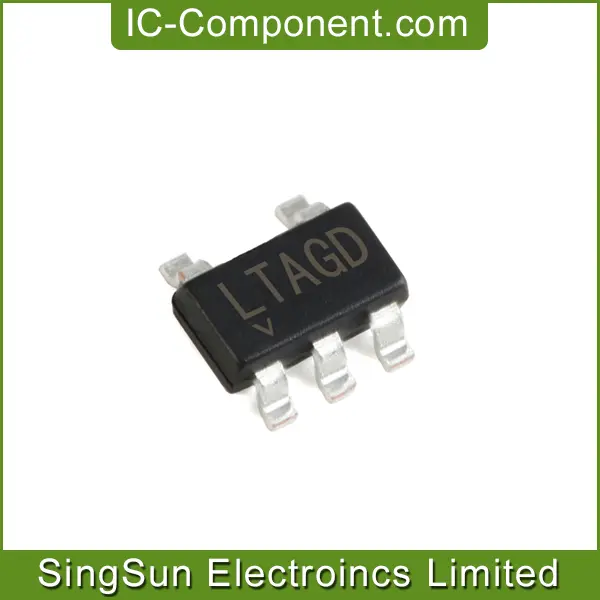

IC OPAMP CHOPPER 500KHZ TSOT23-5
| Part Number | LTC2054HVIS5#TRPBF |
| Date Code | 2124 |
| Quantity Available | 21255 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1000 |
| Datasheet | LTC2054.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | MALAYSIA |
| Country of Diffusion | KOREA |
| Lot Number | BA23721.92 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LTC2054 |
| Series | - |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.5 V/μs |
| Gain Bandwidth Product | 500kHz |
| -3db Bandwidth | - |
| Current - Input Bias | 3pA |
| Voltage - Input Offset | 0.5μV |
| Current - Supply | 175μA |
| Current - Output / Channel | - |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 11 V, ±1.35 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
The LTC2054 is low power, low noise, single, zero-drift operational amplifiers with an extended temperature version (LTC2054MP) that has guaranteed specifications from –55°C to 150°C. They are available in SOT-23 (ThinSOT™) and MS8 packages. They operate from a single 2.7V minimum supply and support ± 5V applications. The current consumption is typically 150μA for the LTC2054 and 130μA/amp for the LTC2055.
The LTC2054 despite their miniature size, feature uncompromising DC performance. The maximum input offset voltage and offset drift are 3.0μV and 30nV/°C over the –40°C to 85°C industrial temperature range. The almost zero DC offset and drift are supported with a power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) of 130dB (typ).
The input common mode voltage ranges from the negative supply up to typically 0.5V below the positive supply. The open-loop gain is typically 140dB. The LTC2054 also feature a 1.6μVP-P DC to 10Hz noise and a 500kHz gain-bandwidth product.
