IC ADC 16BIT 8CH 200KSPS 16SSOP
| Part Number | LTC1867CGN#TRMPBF |
| Date Code | 2127 |
| Quantity Available | 19809 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LTC1867.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | UNITED STATES |
| Lot Number | PG14907.78 |
| MSL | 1 |
| Packaging | Cut Tape (CT) |
| Base Product Number | LTC1867 |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 0.042361111111111 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP |

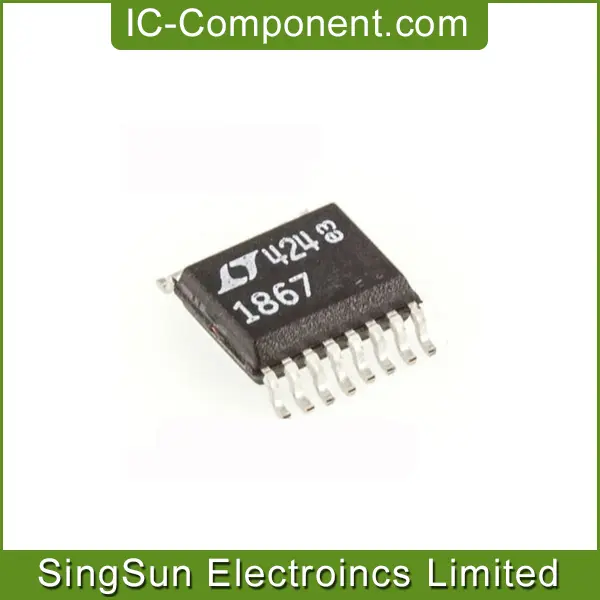

The LTC1867CGN#TRMPBF is pin-compatible, 8-channel 16-bit A/D converters with serial I/O, and an internal reference. The ADCs typically draw only 1.3mA from a single 5V supply.
The 8-channel input multiplexer can be configured for either single-ended or differential inputs and unipolar or bipolar conversions (or combinations thereof). The automatic nap and sleep modes benefit power sensitive applications.
The LTC1867's DC performance is outstanding with a ±2LSB INL specification and no missing codes over temperature. The signal-to-noise ratio (SNR) for the LTC1867 is typically 89dB, with the internal reference.
Housed in a compact, narrow 16-pin SSOP package, the LTC1867CGN#TRMPBF can be used in space-sensitive as well as low-power applications.
