LT8609IMSE#MPBF Price|Datasheet

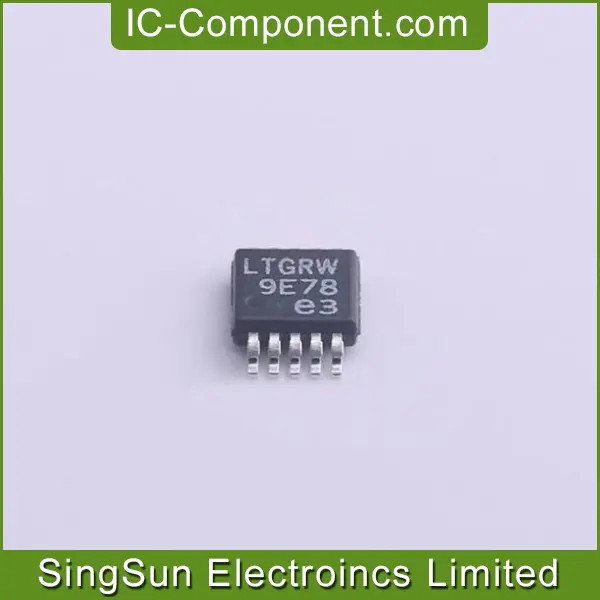

LT8609IMSE#MPBF

IC REG BUCK ADJ 2A SYNC 10MSOP

Quantity: Price

1: $0

10: $0

100: $0

250: $0

500: $0

In Stock

Address: Quantity Available

Shenzhen: 2126 pcs

Shanghai: 252 pcs

Hong Kong: 827 pcs

United States: 3718 pcs

The above prices and inventory are for reference only, please consult customer service for the latest quotation and inventory!

Specifications of LT8609IMSE#MPBF

Part Number	LT8609IMSE#MPBF
Date Code	2142
Quantity Available	6923 pcs
Manufacturer	Linear Technology/Analog Devices
Lead Time	Ship within 24 hours
QTY	1500
Datasheet	LT8609.pdf
Minimum Quantity	More than 50pcs
Distributor	SingSun
RoHS Status	Lead free / RoHS Compliant
Ship From	Hong Kong
Shipment Way	EMS/SF/DHL/TNT/UPS/FedEx
Country of Assembly	SINGAPORE
Country of Diffusion	KOREA
Lot Number	CP82979.65
MSL	3
Packaging	Reel

Base Product Number	LT8609
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	0.782V
Voltage - Output (Max)	42V
Current - Output	2A
Frequency - Switching	200kHz ~ 2.2MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	10-MSOP-EP

LT8609IMSE#MPBF Features

● Wide Input Voltage Range: 3.0V to 42V
● Ultralow Quiescent Current Burst Mode^® Operation:
○ <2.5µA I_Q Regulating 12V_IN to 3.3V_OUT
○ Output Ripple <10mV_P-P
● High Efficiency 2MHz Synchronous Operation:
○ >93% Efficiency at 1A, 5V_OUT from 12V_IN
● 3A Maximum Continuous Output
● Fast Minimum Switch-On Time: 45ns
● LT8609A Available in Fixed 3.3V and 5V Output
● Adjustable and Synchronizable: 200kHz to 2.2MHz
● Spread Spectrum Frequency Modulation for Low EMI
● Allows Use of Small Inductors
● Low Dropout
● Peak Current Mode Operation
● Accurate 1V Enable Pin Threshold
● Internal Compensation
● Output Soft-Start and Tracking
● Small 10-Lead MSOP Package, 16-Lead MSOP Package, or 10-Lead 3mm × 3mm DFN Package with Side Wettable Flanks
● AEC-Q100 Qualified for Automotive Applications

LT8609IMSE#MPBF Description

The LT8609IMSE#MPBF is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of nonswitching quiescent current. The LT8609IMSE#MPBF can deliver 3A of continuous current. Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock, or spread spectrum modulation for low EMI operation. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VIN UVLO or to shut down the part. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up while the PG flag signals when VOUT is within ±8.5% on the adjustable output parts or ±7.5% on the fixed output parts of the programmed output voltage as well as fault conditions.
