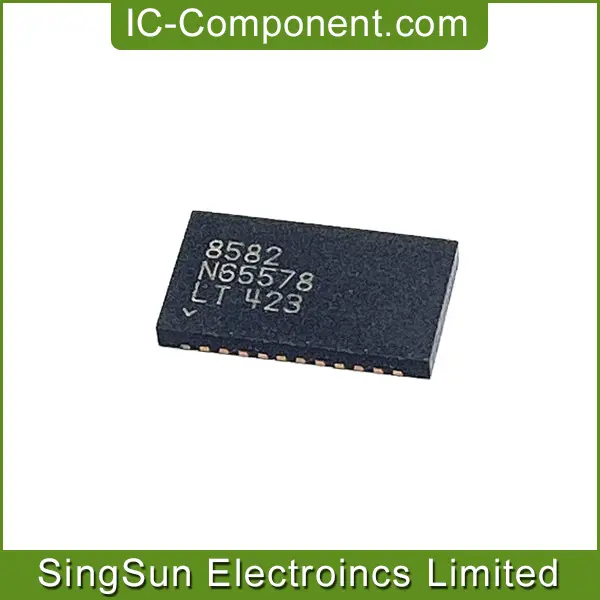

IC REG MULT CONFIG INV ADJ 24DFN
| Part Number | LT8582EDKD#MPBF |
| Date Code | 2225 |
| Quantity Available | 24899 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 500 |
| Datasheet | LT8582.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | THAILAND |
| Country of Diffusion | UNITED STATES |
| Lot Number | ZW23864.13 |
| MSL | 1 |
| Packaging | Reel |
| Base Product Number | LT8582 |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Boost, Cuk, Flyback, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 22V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 42V (Switch) |
| Current - Output | 3.3A (Switch) |
| Frequency - Switching | 200kHz ~ 2.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFDFN Exposed Pad |
| Supplier Device Package | 24-DFN (7x4) |
The LT8582 is a dual independent channel PWM DC/DC converter with a power good pin and built-in fault protection to help guard against input overvoltage and overtemperature conditions. Each channel consists of a 42V master switch and a 42V slave switch that can be tied together for a total current limit of 3A.
The LT8582 is ideal for many local power supply designs. Each channel can be easily configured in boost, SEPIC, inverting, or flyback configurations. Together, the two channels can produce a 12V and a –12V output with 14.4W of combined output power from a 5V input. In addition, the LT8582’s slave switch allows the part to be configured in high voltage, high power charge pump topologies that are more efficient and require fewer components than traditional circuits.
The LT8582 also features innovative SHDN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function. Additional features such as output short protection, frequency foldback and soft-start are integrated. The LT8582 is available in a 24-pin 7mm × 4mm DFN package.
