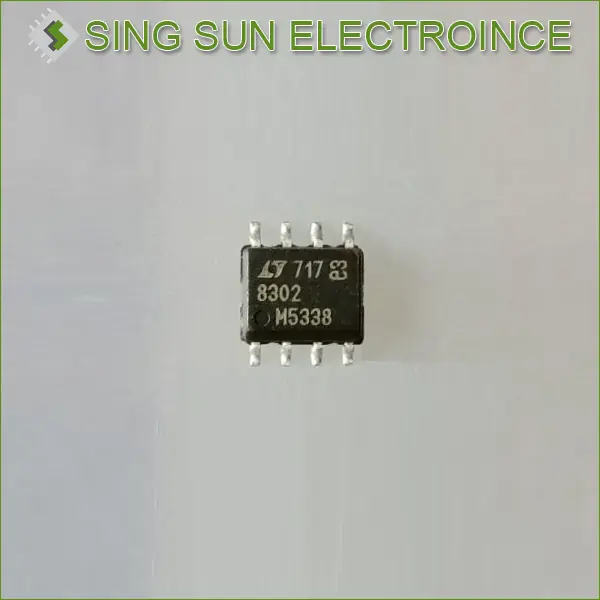

IC REG FLYBCK INV ISO 3.6A 8SOIC
| Part Number | LT8302ES8E#MPBF |
| Date Code | 2117 |
| Quantity Available | 25844 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LT8302.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | PHILIPPINES |
| Country of Diffusion | UNITED STATES |
| Lot Number | AY79719.49 |
| MSL | 1 |
| Packaging | Reel |
| Base Product Number | LT8302 |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable |
| Topology | Flyback |
| Output Type | - |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.8V |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | - |
| Voltage - Output (Max) | - |
| Current - Output | 3.6A |
| Frequency - Switching | Down to 12kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
The LT8302ES8E#MPBF is a monolithic micropower isolated flyback converter. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no third winding or opto-isolator for regulation. The output voltage is programmed with two external resistors and a third optional temperature compensation resistor. Boundary mode operation provides a small magnetic solution with excellent load regulation. Low ripple Burst Mode operation maintains high efficiency at light load while minimizing the output voltage ripple. A 3.6A, 65V DMOS power switch is integrated along with all the high voltage circuitry and control logic into a thermally enhanced 8-lead SO package.
The LT8302ES8E#MPBF operates from an input voltage range of 3V to 42V and delivers up to 18W of isolated output power. The high level of integration and the use of boundary and low ripple burst modes result in a simple to use, low component count, and high efficiency application solution for isolated power delivery.
