IC OPAMP GP 215MHZ RRO TSOT23-6
| Part Number | LT6230CS6#MPBF |
| Date Code | 2342 |
| Quantity Available | 31532 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2500 |
| Datasheet | LT6230.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | THAILAND |
| Country of Diffusion | UNITED STATES |
| Lot Number | VN64958.58 |
| MSL | 1 |
| Packaging | Reel |
| Base Product Number | LT6230 |
| Series | - |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 70 V/μs |
| Gain Bandwidth Product | 215MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 5μA |
| Voltage - Input Offset | 100μV |
| Current - Supply | 3.3mA |
| Current - Output / Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 12.6 V, ±1.5 V ~ 6.3 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
The LT6230 is single low noise, rail-to-rail output unity-gain stable op amps that feature 1.1nV/√Hz noise voltage and draw only 3.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 215MHz gain-bandwidth product, a 70V/μs slew rate and are optimized for low supply voltage signal conditioning systems. The LT6230 include an enable pin that can be used to reduce the supply current to less than 10μA.
The amplifier family has an output that swings within 50mV of either supply rail to maximize the signal dynamic range in low supply applications and is specified on 3.3V, 5V and ±5V supplies. The en • √ISUPPLY product of 1.9 per amplifier is among the most noise efficient of any op amp.

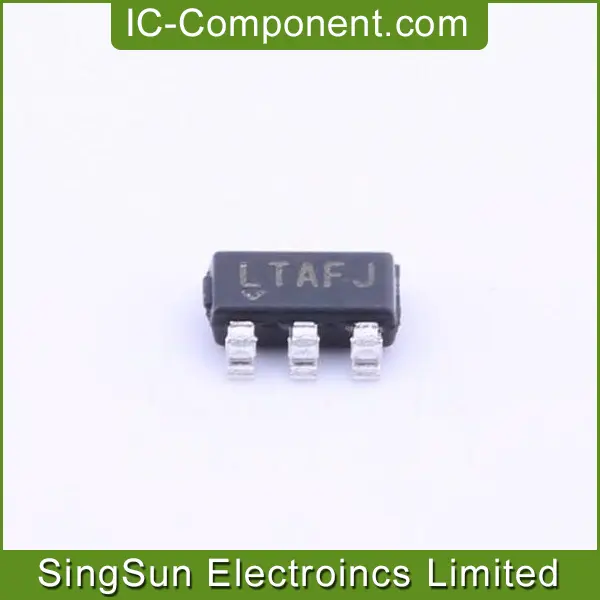

The LT6230 is available in the 6-lead SOT‑23 package. For compact layouts, the dual is also available in a tiny dual fine pitch leadless package (DFN).
