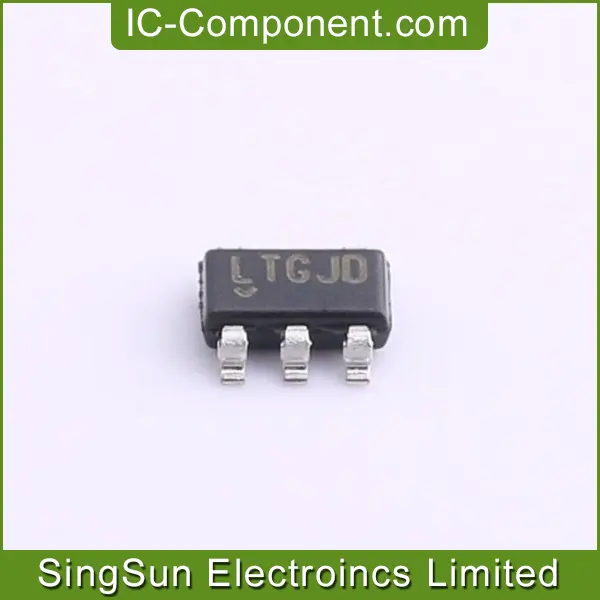

IC OPAMP GP 3.3MHZ RRO TSOT23-5
| Part Number | LT6015IS5#TRMPBF |
| Date Code | 2222 |
| Quantity Available | 3000 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | LT6015.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | KOREA |
| Lot Number | XE85637.34 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT6015 |
| Series | - |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.8 V/μs |
| Gain Bandwidth Product | 3.3MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 2nA |
| Voltage - Input Offset | 55μV |
| Current - Supply | 325μA |
| Current - Output / Channel | - |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 50 V, ±1.5V ~ 25 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
The LT6015IS5#TRMPBF is single rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.
The Over-The-Top® input stage of the LT6015 is designed to provide added protection in tough environments. The input common mode range extends from V– to V+ and beyond: these amplifiers operate with inputs up to 76V above V– independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6015 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.
The LT6015IS5#TRMPBF is offered in a 5-lead SOT package.
