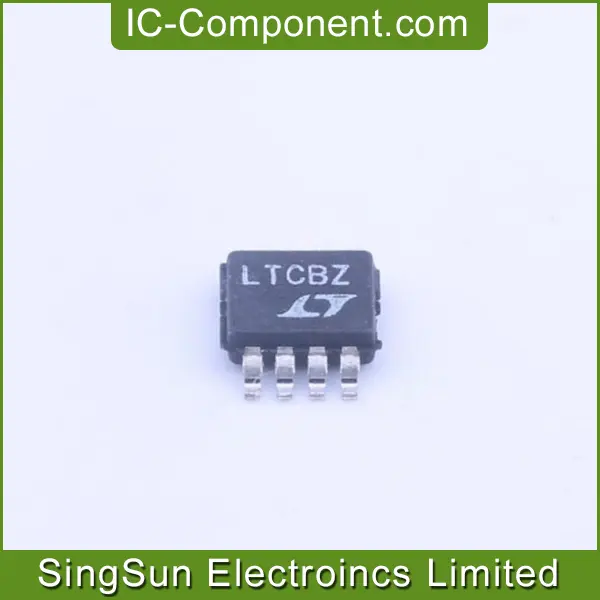

IC OPAMP GP 3KHZ RRO 8MSOP
| Part Number | LT6004CMS8#TRPBF |
| Date Code | 2043 |
| Quantity Available | 7162 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2500 |
| Datasheet | LT6004.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | MALAYSIA |
| Country of Diffusion | IRELAND |
| Lot Number | FU21817.67 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT6004 |
| Series | - |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.0013 V/μs |
| Gain Bandwidth Product | 3kHz |
| -3db Bandwidth | - |
| Current - Input Bias | 40pA |
| Voltage - Input Offset | 185μV |
| Current - Supply | 1.25μA |
| Current - Output / Channel | 9mA |
| Voltage - Supply, Single/Dual (±) | 1.6 V ~ 16 V, ±0.8 V ~ 8 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
The LT6004 is dual op amps designed to maximize battery life and performance for portable applications. These amplifiers operate on supplies as low as 1.6V and are fully specified and guaranteed over temperature on 1.8V, 5V and ±8V supplies while only drawing 1µA maximum quiescent current.
The ultralow supply current and low operating voltage are combined with excellent amplifier specifications; input offset voltage of 500µV maximum with a typical drift of only 2µV/°C, input bias current of 90pA maximum, open loop gain of 100,000 and the ability to drive 500pF capacitive loads, making the LT6004 amplifiers ideal when excellent performance is required in battery powered applications.
The dual LT6004 is available in the 8-pin MSOP and 3mm × 3mm DFN packages. These devices are specified over the commercial, industrial and automotive temperature ranges.
