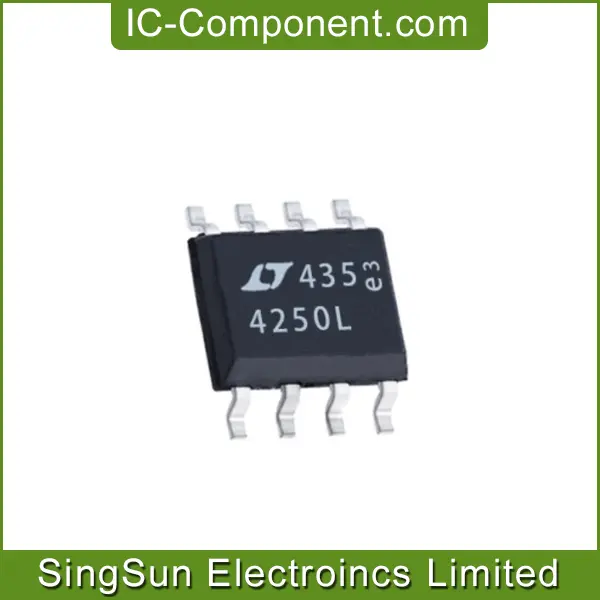

IC CONTRLR HOTSWAP NEG 48V 8SOIC
| Part Number | LT4250LCS8#TRPBF |
| Date Code | 2034 |
| Quantity Available | 16396 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1000 |
| Datasheet | LT4250L.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SINGAPORE |
| Country of Diffusion | IRELAND |
| Lot Number | QE27286.95 |
| MSL | 3 |
| Base Product Number | LT4250L |
| Packaging | Tape & Reel (TR) |
| Series | - |
| Type | Hot Swap Controller |
| Number of Channels | 1 |
| Internal Switch(s) | No |
| Applications | -48V |
| Features | Fault Timeout |
| Programmable Features | Current Limit, Latched Fault, OVP, UVLO |
| Voltage - Supply | -80 V ~ 18 V |
| Current - Output (Max) | - |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 1.6mA |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
The LT4250L is 8-pin, negative 48V Hot Swap™ controllers that allow a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the programmable undervoltage threshold or greater than the overvoltage threshold. A programmable current limit protects the system against shorts. After a 500μs timeout the current limit activates the electronic circuit breaker. The PWRGD (LT4250L) signal can be used to directly enable a power module. The LT4250L is designed for modules with a low enable input.
The LT4250L is available in 8-pin PDIP and SO packages
