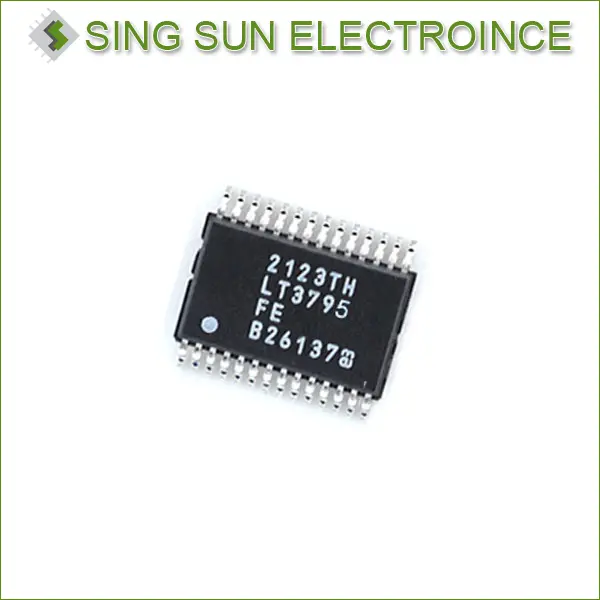

IC LED DRIVER CTRLR DIM 28TSSOP
| Part Number | LT3795EFE#TRPBF |
| Date Code | 2113 |
| Quantity Available | 6000 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LT3795.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | THAILAND |
| Country of Diffusion | USA |
| Lot Number | VY78563.11 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT3795 |
| Series | - |
| Type | DC DC Controller |
| Topology | - |
| Internal Switch(s) | No |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 110V |
| Voltage - Output | - |
| Current - Output / Channel | - |
| Frequency | 100kHz ~ 1MHz |
| Dimming | Analog, PWM |
| Applications | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP |
The LT3795EFE#TRPBF is a DC/DC controller designed to regulate a constant-current or constant-voltage and is ideal for driving LEDs. It drives a low side external N-channel power MOSFET from an internal regulated 7.7V supply. The fixed frequency and current mode architecture result in stable operation over a wide range of supply and output voltages. Spread spectrum frequency modulation (SSFM) can be activated for improved electromagnetic compatibility (EMC) performance. The ground referred voltage FB pin serves as the input for several LED protection features, and also allows the converter to operate as a constant-voltage source. The maximum output current is set by an external resistor, and the output current amplifier has a rail-to-rail common mode range.
The LT3795EFE#TRPBF also includes a separate input current sensing amplifier that is used to limit input current. The TG pin inverts and level shifts the PWM signal to drive the gate of the external PMOS. The PWM input provides LED dimming ratios of up to 3000:1, and the CTRL inputs provide additional analog dimming capability.
