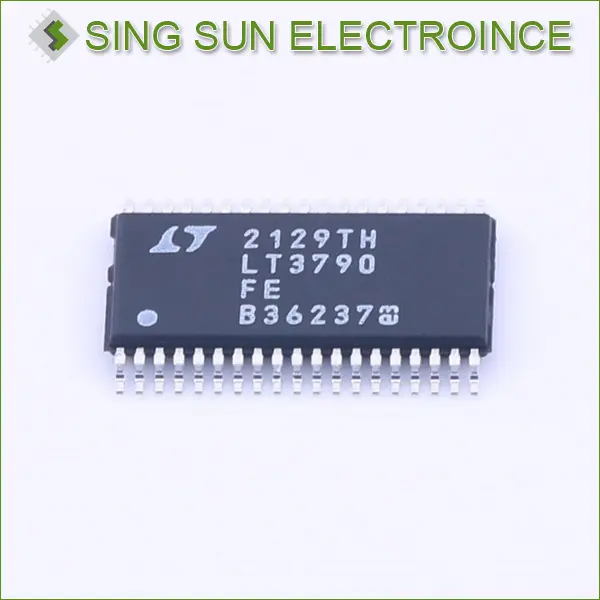

IC REG CTRLR BUCK-BOOST 38TSSOP
| Part Number | LT3790HFE#PBF |
| Date Code | 2213 |
| Quantity Available | 14893 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 3000 |
| Datasheet | LT3790.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | MALAYSIA |
| Country of Diffusion | KOREA |
| Lot Number | JS70509.35 |
| MSL | 3 |
| Control Features | Enable, Frequency Control, Soft Start |
| Base Product Number | LT3790 |
| Packaging | Tube |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.7 V ~ 60 V |
| Frequency - Switching | 200kHz ~ 700kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP |
The LT3790HFE#PBF is a synchronous 4-switch buck-boost voltage/current regulator controller. The LT3790 can regulate output voltage, output current, or input current with input voltages above, below, or equal to the output voltage. The constant-frequency, current mode architecture allows its frequency to be adjusted or synchronized from 200kHz to 700kHz. No top FET refresh switching cycle is needed in buck or boost operation. With 60V input, 60V output capability and seamless transitions between operating regions, the LT3790 is ideal for voltage regulator, battery/super-capacitor charger applications in automotive, industrial, telecom, and even battery-powered systems.
The LT3790HFE#PBF provides input current monitor, output current monitor, and various status flags, such as C/10 charge termination and shorted output flag.
