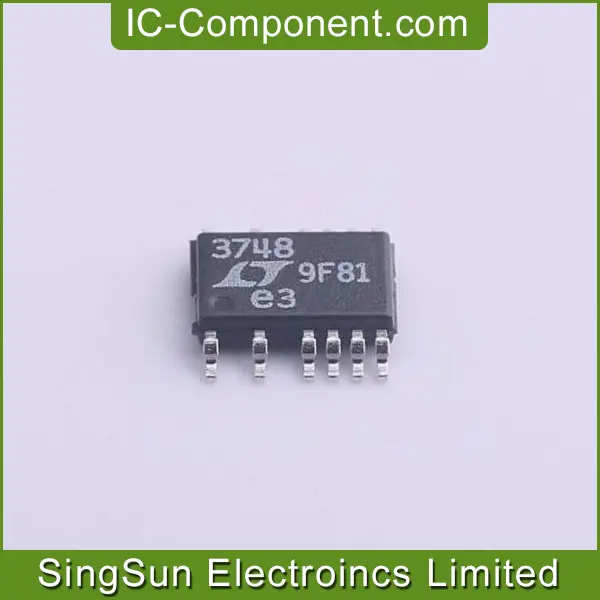

IC REG CTRLR FLYBACK 16MSOP
| Part Number | LT3748IMS#MPBF |
| Date Code | 2135 |
| Quantity Available | 17035 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LT3748.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | THAILAND |
| Country of Diffusion | UNITED STATES |
| Lot Number | SJ74995.16 |
| MSL | 1 |
| Control Features | Enable, Soft Start |
| Base Product Number | LT3748 |
| Packaging | Reel |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 5 V ~ 100 V |
| Frequency - Switching | - |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width), 12 Leads |
| Supplier Device Package | 16-MSOP |
The LT3748 is a switching regulator controller specifically designed for the isolated flyback topology and capable of high power. It drives a low side external N-channel power MOSFET from an internally regulated 7V supply. No third winding or opto-isolator is required for regulation as the part senses the isolated output voltage directly from the primary-side flyback waveform.
The LT3748 utilizes boundary mode to provide a small magnetic solution without compromising load regulation. Operating frequency is set by load current and transformer magnetizing inductance. The gate drive of the LT3748 combined with a suitable external MOSFET allow it to deliver load power up to several tens of watts from input voltages as high as 100V.
The LT3748 is available in a high voltage 16-lead MSOP package with four leads removed.
