IC REG MULT CONFIG INV ADJ 8MSOP
| Part Number | LT3580MPMS8E#TRPBF |
| Date Code | 2020 |
| Quantity Available | 14828 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LT3580.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SINGAPORE |
| Country of Diffusion | USA |
| Lot Number | WQ38073.31 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT3580 |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Boost, Cuk, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 32V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | 42V (Switch) |
| Current - Output | 2A (Switch) |
| Frequency - Switching | 200kHz ~ 2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |

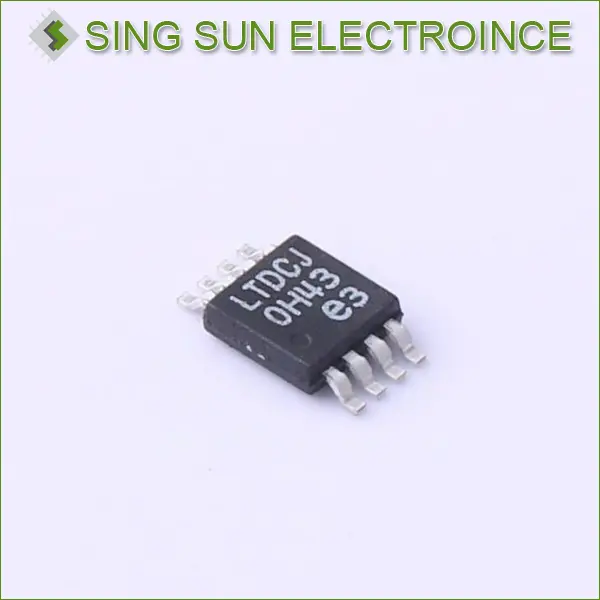

The LT3580MPMS8E#TRPBF is a PWM DC/DC converter containing an internal 2A, 42V switch. The LT3580 can be configured as either a boost, SEPIC or inverting converter. Capable of generating 12V at 550mA or –12V at 350mA from a 5V input, the LT3580 is ideal for many local power supply designs.
The LT3580MPMS8E#TRPBF has an adjustable oscillator, set by a resistor from the RT pin to ground. Additionally, the LT3580 can be synchronized to an external clock. The free running or synchronized switching frequency range of the part can be set between 200kHz and 2.5MHz.
The LT3580MPMS8E#TRPBF also features innovative SHDN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function.
Additional features such as frequency foldback and soft-start are integrated. The LT3580MPMS8E#TRPBF is available in tiny 3mm × 3mm 8-lead DFN and 8-lead MSOP packages.
