3A, 0.95V TO 10V, VERY LOW DROPO
| Part Number | LT3033IUDC#TRPBF |
| Date Code | 2149 |
| Quantity Available | 2500 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2500 |
| Datasheet | LT3033.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | PHILIPPINES |
| Country of Diffusion | TAIWAN,CHINA |
| Lot Number | JS38533.62 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Series | - |
| Base Product Number | LT3033 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 0.2V |
| Voltage - Output (Max) | 9.7V |
| Voltage Dropout (Max) | 0.24V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 3.5mA |
| Current - Supply (Max) | 60mA |
| PSRR | 60dB ~ 52dB (120Hz ~ 1MHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

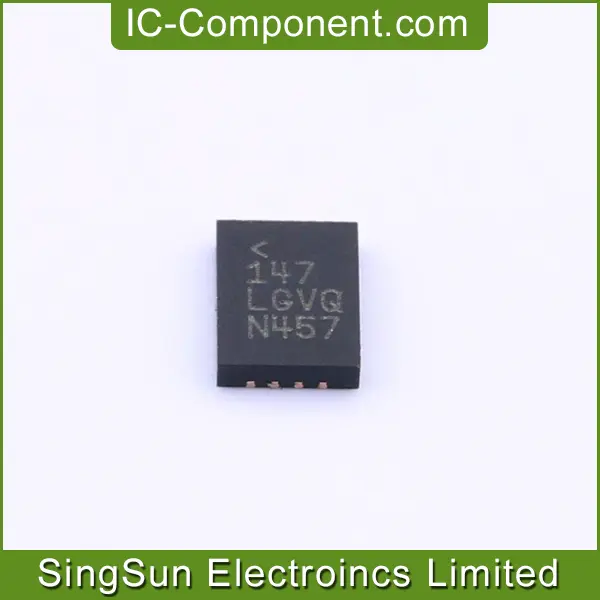

| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x4) |
The LT3033 is a very low dropout voltage (VLDO™) linear regulator that operates from a single input supply down to 0.95V. The device supplies 3A output current with 95mV typical dropout voltage. The LT3033 is ideal for low input voltage to low output voltage applications, providing comparable electrical efficiency to a switching regulator.
The LT3033 optimizes stability and transient response with low ESR ceramic output capacitors as small as 10μF. Other features include programmable current limit, an output current monitor and a power good flag to indicate output voltage regulation. In shutdown, quiescent current typically drops to 22μA. Internal protection circuitry includes reverse-battery protection, current limiting with foldback, thermal limiting with hysteresis and reverse-current protection.
The LT3033 is available as an adjustable device with an output voltage down to the 200mV reference. The device is available in a thermally enhanced, low profile 3mm × 4mm × 0.75mm QFN package.
