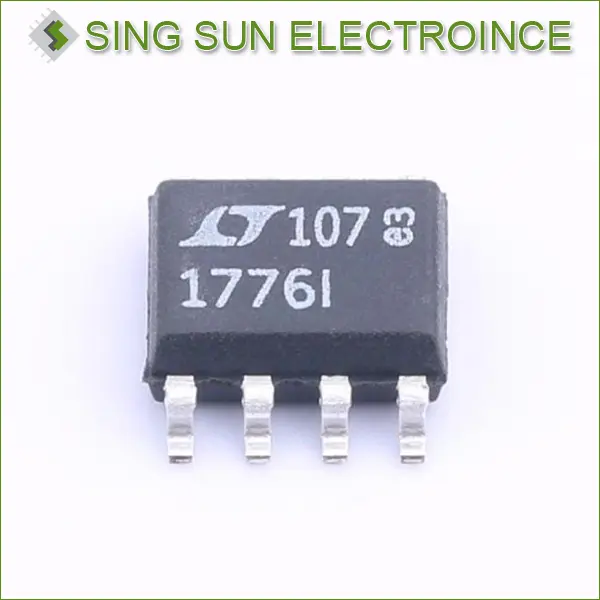

IC REG BUCK ADJ 0.55A 8SOIC
| Part Number | LT1776IS8#TRPBF |
| Date Code | 2145 |
| Quantity Available | 568 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LT1776.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | KOREA |
| Lot Number | KG77608.68 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT1776 |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7.4V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 34V |
| Current - Output | 550mA (Switch) |
| Frequency - Switching | 200kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
The LT1776IS8#TRPBF is a wide input range, high efficiency Buck (step-down) switching regulator. The monolithic die includes all oscillator, control and protection circuitry. The part can accept input voltages as high as 60V and contains an output switch rated at 700mA peak current. Current mode control delivers excellent dynamic input supply rejection and short-circuit protection.
The LT1776IS8#TRPBF contains several features to enhance efficiency. The internal control circuitry is normally powered via the VCC pin, thereby minimizing power drawn directly from the VIN supply. The action of the LT1776IS8#TRPBF switch circuitry is also load dependent. At medium to high loads, the output switch circuitry maintains fast rise time for good efficiency. At light loads, rise time is deliberately reduced to avoid pulse skipping behavior.
The available SO-8 package and 200kHz switching frequency allow for minimal PC board area requirements.
