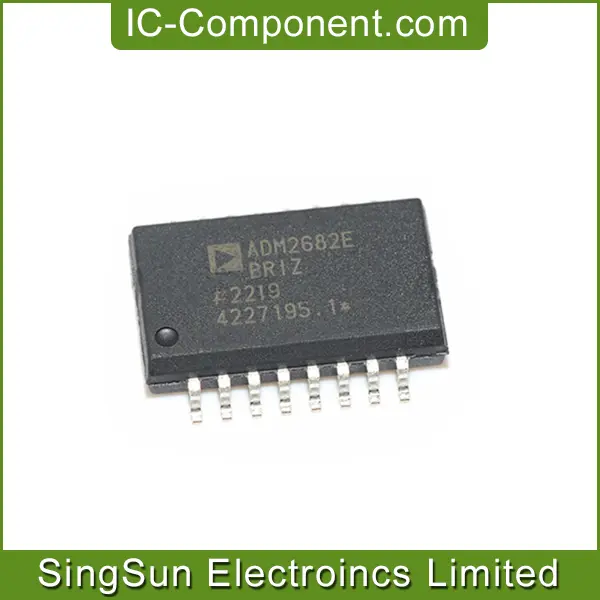

ADM2682EBRIZ-RL7

ADM2682EBRIZ-RL7

DGTL ISO 5KV RS422/RS485 16SOIC

Quantity
Price
1
$0
10
$0
100
$0
250
$0
500
$0

In Stock

Address
Quantity Available
Shenzhen
1513 pcs
Shanghai
0 pcs
Hong Kong
0 pcs
United States
0 pcs
The above prices and inventory are for reference only, please consult customer service for the latest quotation and inventory!

Specifications of ADM2682EBRIZ-RL7

Part Number ADM2682EBRIZ-RL7
Date Code 2103
Quantity Available 1513 pcs
Manufacturer Analog Devices Inc.
Lead Time Ship within 24 hours
QTY 2500
Datasheet ADM2682E.pdf
Minimum Quantity More than 50pcs
Distributor SingSun
RoHS Status Lead free / RoHS Compliant
Ship From Hong Kong
Shipment Way EMS/SF/DHL/TNT/UPS/FedEx
Country of Assembly SINGAPORE
Country of Diffusion USA
Lot Number OJ62578.54
MSL 1
Packaging Tape & Reel (TR)/Cut Tape (CT)/Reel
Series isoPower®
Base Product Number ADM2682E
Technology Magnetic Coupling
Type RS422, RS485
Isolated Power Yes
Number of Channels 3
Inputs - Side 1/Side 2 2/1
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 16Mbps
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Pulse Width Distortion (Max) -
Rise / Fall Time (Typ) 15ns, 15ns (Max)
Voltage - Supply 3.3V ~ 5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC

ADM2682EBRIZ-RL7 Features

● 5 kV rms isolated RS-485/RS-422 transceiver, configurable as half or full duplex
● isoPower® integrated isolated dc-to-dc converter
● ±15 kV ESD protection on RS-485 input/output pins
● Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
● Data rate: 16 Mbps
● 5 V or 3.3 V operation
● Connect up to 256 nodes on one bus
● Open- and short-circuit, fail-safe receiver inputs
● High common-mode transient immunity: >25 kV/μs
● See data sheet for additional features

ADM2682EBRIZ-RL7 Applications

● Isolated RS-485/RS-422 interfaces
● Industrial field networks
● Multipoint data transmission systems

Quote for ADM2682EBRIZ-RL7

Can't see clearly? Click to refresh

ADM2682EBRIZ-RL7 Description

The ADM2682EBRIZ-RL7 are fully integrated 5 kV rms signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2682E / ADM2687E include an integrated 5 kV rms isolated dc-to-dc power supply that eliminates the need for an external dc-to-dc isolation block.

They are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).

The devices integrate Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver, and Analog Devices isoPower® dc-to-dc converter into a single package. The devices are powered by a single 5 V or 3.3 V supply, realizing a fully integrated signal and power isolated RS-485 solution.

The ADM2682EBRIZ-RL7 drivers have an active high enable. An active low receiver enable is also provided, which causes the receiver output to enter a high impedance state when disabled.

The devices have current limiting and thermal shutdown features to protect against output short circuits and situations where bus contention may cause excessive power dissipation. The parts are fully specified over the industrial temperature range and are available in a highly integrated, 16-lead, wide- body SOIC package with >8 mm creepage and clearance.

The ADM2682EBRIZ-RL7 contain isoPower technology that uses high frequency switching elements to transfer power through the transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to AN-0971 Application Note, Recommendations for Control of Radiated Emissions with isoPower Devices, for details on board layout considerations.
