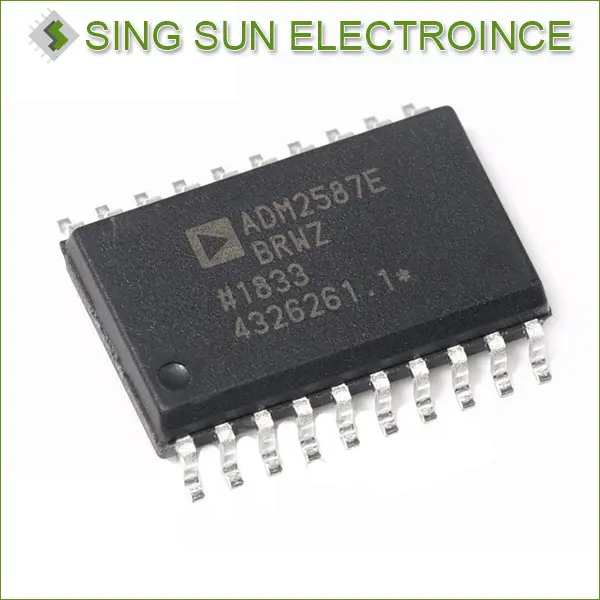

DGT ISO 2.5KV RS422/RS485 20SOIC
| Part Number | ADM2587EBRWZ-REEL7 |
| Date Code | 2126 |
| Quantity Available | 8800 pcs |
| Manufacturer | Analog Devices Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 500 |
| Datasheet | ADM2587E.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SOUTH KOREA |
| Country of Diffusion | IRELAND |
| Lot Number | RE98826.43 |
| MSL | 3 |
| Packaging | Tape & Reel (TR)/Cut Tape (CT)/Reel |
| Series | IsoPower®, iCoupler® |
| Base Product Number | ADM2587E |
| Technology | Magnetic Coupling |
| Type | RS422, RS485 |
| Isolated Power | Yes |
| Number of Channels | 3 |
| Inputs - Side 1/Side 2 | 2/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 500kbps |
| Propagation Delay tpLH / tpHL (Max) | - |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 1.1µs, 1.1µs (Max) |
| Voltage - Supply | 3.3V ~ 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
The ADM2587EBRWZ-REEL7 is fully integrated signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2587EBRWZ-REEL7 include an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block.
They are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).
The devices integrate Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver, and Analog Devices isoPower dc-to-dc converter into a single package. The devices are powered by a single 5 V or 3.3 V supply, realizing a fully integrated signal and power isolated RS-485 solution.
The ADM2587EBRWZ-REEL7 driver has an active high enable. An active low receiver enable is also provided that causes the receiver output to enter a high impedance state when disabled.
The devices have current limiting and thermal shutdown features to protect against output short circuits and situations where bus contention may cause excessive power dissipation. The parts are fully specified over the industrial temperature range and are available in a highly integrated, 20-lead, wide-body SOIC package.
The ADM2587EBRWZ-REEL7 contain isoPower technology that uses high frequency switching elements to transfer power through the transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to Application Note AN-0971, Control of Radiated Emissions with isoPower Devices, for details on board layout considerations.
