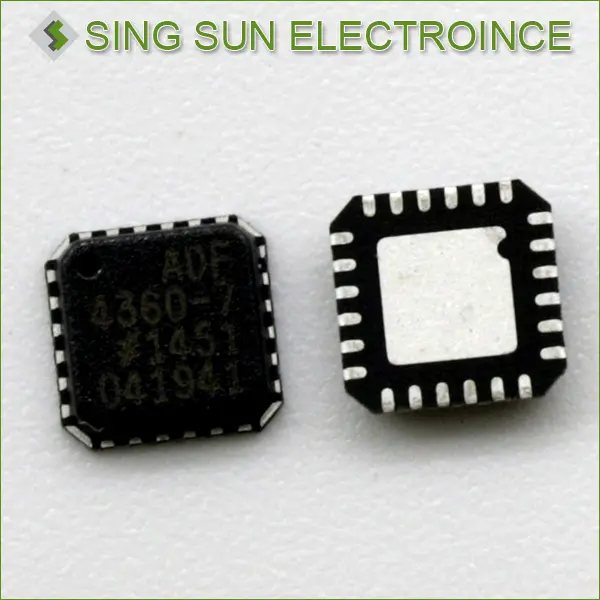

IC SYNTHESIZER VCO 24LFCSP
| Part Number | ADF4360-7BCPZRL7 |
| Date Code | 2137 |
| Quantity Available | 4500 pcs |
| Manufacturer | Analog Devices Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 3000 |
| Datasheet | ADF4360-7.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | KOREA |
| Lot Number | VQ47186.11 |
| MSL | 1 |
| Base Product Number | ADF4360-7 |
| Packaging | Tape & Reel (TR)/Cut Tape (CT)/Reel |
| Type | Fanout Distribution, Integer N Synthesizer (RF) |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:02 |
| Differential - Input:Output | No/No |
| Frequency - Max | 1.8GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 3 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP-WQ (4x4) |
The ADF4360-7BCPZRL7 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-7 center frequency is set by external inductors. This allows a frequency range of between 350 MHz to 1800 MHz. In addition, a divide-by-2 option is available, whereby the user receives an RF output of between 175 MHz and 900 MHz.
Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
