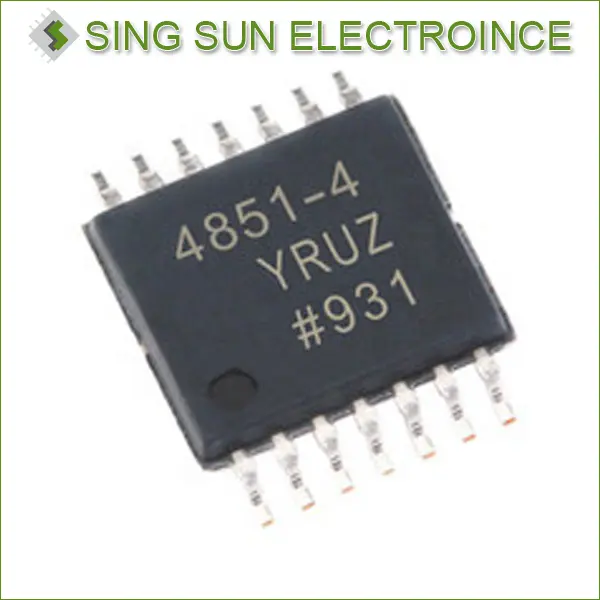

IC OPAMP VFB 105MHZ RRO 14TSSOP
| Part Number | ADA4851-4YRUZ-RL |
| Date Code | 2228 |
| Quantity Available | 2500 pcs |
| Manufacturer | Analog Devices Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 3000 |
| Datasheet | ADA4851-4.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | MALAYSIA |
| Country of Diffusion | USA |
| Lot Number | GB53110.67 |
| MSL | 1 |
| Packaging | Tape & Reel (TR)/Cut Tape (CT)/Reel |
| Base Product Number | ADA4851-4 |
| Series | - |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 375 V/μs |
| Gain Bandwidth Product | - |
| -3db Bandwidth | 105MHz |
| Current - Input Bias | 2.2μA |
| Voltage - Input Offset | 600μV |
| Current - Supply | 2.9mA |
| Current - Output / Channel | 83mA |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 12 V, ±1.35 V ~ 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | |
| Supplier Device Package | 14-TSSOP (0.173", 4.40mm Width) |
The ADA4851-4YRUZ-RL are low cost, high speed, voltage feedback rail-to-rail output op amps. Despite their low price, these parts provide excellent overall performance and versatility. The 130 MHz, −3 dB bandwidth and high slew rate make these amplifiers well suited for many general-purpose, high speed applications.
The ADA4851-4YRUZ-RL is designed to operate at supply voltages as low as +3 V and up to ±5 V. These parts provide true single-supply capability, allowing input signals to extend 200 mV below the negative rail and to within 2.2 V of the positive rail. On the output, the amplifiers can swing within 60 mV of either supply rail.
With their combination of low price, excellent differential gain (0.08%), differential phase (0.09º), and 0.1 dB flatness out to 11 MHz, these amplifiers are ideal for consumer video applications.
The ADA4851 family is designed to work over the extended temperature range (−40°C to +125°C). The ADA4851-4W and ADA4851-2W are automotive grade versions, qualified for −40°C to +125°C operation per AEC-Q100. See the Automotive Products section for more details.
