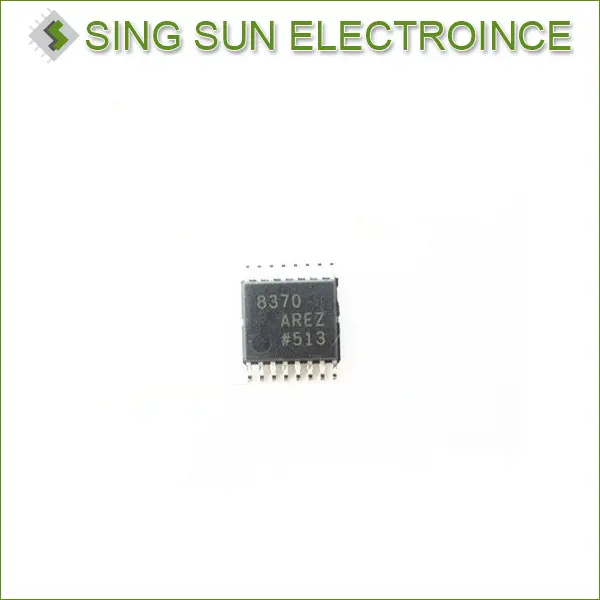

IC OPAMP VGA 750MHZ 16TSSOP
| Part Number | AD8370AREZ |
| Date Code | 2122 |
| Quantity Available | 4000 pcs |
| Manufacturer | Analog Devices Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 1000 |
| Datasheet | AD8370.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | SINGAPORE |
| Country of Diffusion | IRELAND |
| Lot Number | AF56104.85 |
| MSL | 1 |
| Packaging | Tube |
| Base Product Number | AD8370 |
| Series | - |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | 5750 V/μs |
| Gain Bandwidth Product | - |
| -3db Bandwidth | 750MHz |
| Current - Input Bias | 400pA |
| Voltage - Input Offset | - |
| Current - Supply | 79mA |
| Current - Output / Channel | - |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
The AD8370AREZ is a low cost, digitally controlled, variable gain amplifier (VGA) that provides precision gain control, high IP3, and low noise figure. The excellent distortion performance and wide bandwidth make the AD8370 a suitable gain control device for modern receiver designs.
For wide input, dynamic range applications, the AD8370 provides two input ranges: high gain mode and low gain mode. A vernier, 7-bit, transconductance (gm) stage provides 28 dB of gain range at better than 2 dB resolution and 22 dB of gain range at better than 1 dB resolution. A second gain range, 17 dB higher than the first, can be selected to provide improved noise performance.
The AD8370AREZ is powered on by applying the appropriate logic level to the PWUP pin. When powered down, the AD8370 consumes less than 4 mA and offers excellent input to output isolation. The gain setting is preserved when operating in a power-down mode.
Gain control of the AD8370 is through a serial 8-bit gain control word. The MSB selects between the two gain ranges, and the remaining 7 bits adjust the overall gain in precise linear gain steps.
Fabricated on the ADI high speed XFCB process, the high bandwidth of the AD8370 provides high frequency and low distortion. The quiescent current of the AD8370 is 78 mA typically. The AD8370 amplifier comes in a compact, thermally enhanced 16-lead TSSOP package and operates over the temperature range of −40°C to +85°C.
