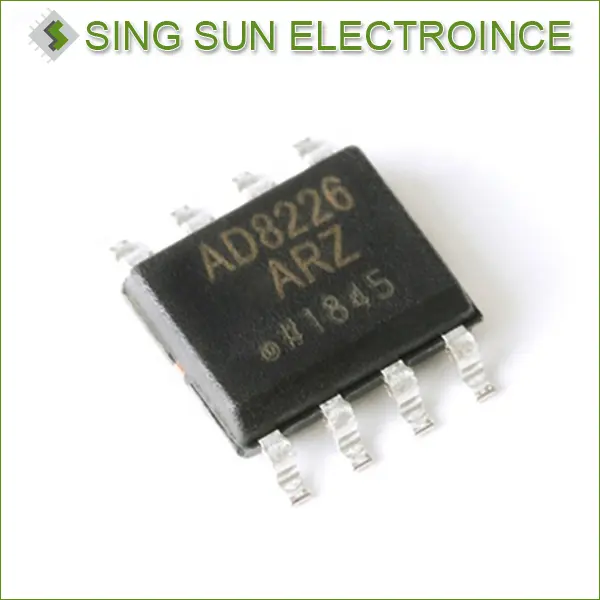

IC OPAMP INSTR 1.5MHZ RRO 8SOIC
| Part Number | AD8226ARZ-R7 |
| Date Code | 2333 |
| Quantity Available | 6000 pcs |
| Manufacturer | Analog Devices Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 1500 |
| Datasheet | AD8226.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | PHILIPPINES |
| Country of Diffusion | KOREA |
| Lot Number | GV11331.76 |
| MSL | 1 |
| Packaging | Tape & Reel (TR)/Cut Tape (CT)/Reel |
| Base Product Number | AD8226 |
| Series | - |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.6 V/μs |
| Gain Bandwidth Product | - |
| -3db Bandwidth | 1.5MHz |
| Current - Input Bias | 20nA |
| Voltage - Input Offset | 100μV |
| Current - Supply | 350μA |
| Current - Output / Channel | 13mA |
| Voltage - Supply, Single/Dual (±) | 2.2 V ~ 36 V, ±1.35 V ~ 18 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | |
| Supplier Device Package | 8-SOIC (0.154", 3.90mm Width) |
The AD8226ARZ-R7 is a low cost, wide supply range instrumentation amplifier that requires only one external resistor to set any gain between 1 and 1000.
The AD8226ARZ-R7 is designed to work with a variety of signal voltages. A wide input range and rail-to-rail output allow the signal to make full use of the supply rails. Because the input range also includes the ability to go below the negative supply, small signals near ground can be amplified without requiring dual supplies. The AD8226 operates on supplies ranging from ±1.35 V to ±18 V for dual supplies and 2.2 V to 36 V for single supply.
The robust AD8226 inputs are designed to connect to real-world sensors. In addition to its wide operating range, the AD8226 can handle voltages beyond the rails. For example, with a ±5 V supply, the part is guaranteed to withstand ±35 V at the input with no damage. Minimum as well as maximum input bias currents are specified to facilitate open wire detection.
The AD8226ARZ-R7 is perfect for multichannel, space-constrained industrial applications. Unlike other low cost, low power instrumentation amplifiers, the AD8226 is designed with a minimum gain of 1 and can easily handle ±10 V signals. With its MSOP package and 125°C temperature rating, the AD8226 thrives in tightly packed, zero airflow designs.
The AD8226ARZ-R7 is available in 8-lead MSOP and SOIC packages, and is fully specified for −40°C to +125°C operation.
For a device with a similar package and performance as the AD8226 but with gain settable from 5 to 1000, consider using the AD8227.
